HF817A : ICU Bed Motorised With Battery Backup

Technical Specifications:

• Major Features Include: Backrest, Knee rest, Height Adjustment, Trendelenburg/Reverse Trendelenburg, Cardiac Chair Position, Neuro Position, Zero Level Position maneuverable by four separate liner actuators which are operated through Patient Control Unit and Nurse Control Unit.
• Back rest 0-75°
• Knee rest 0-35°
• Minimum Height 550mm
• Maximum Height 750mm
• Trendelenburg / Reverse Trendelenburg 0-12°
• Dual Side Liver for Manual CPR
• Frame size: L 2060mm x W 900mm
• Overall Dimensions: L 2120mm x W 1080mm
• Epoxy coated mild steel structure with 4 section mattress platform made up of CRCA Sheet.
• Detachable Polymer moulded Head and foot bows giving a soothing look.
• 4 sectional polymer moulded safety side rails with separate angle indicators.
• Corner PU buffers to absorb impact and reduce damage during handling.
• Twin wheel heavy duty Central Locking Castors of 125mm Dia for smooth mobility with control.
• Heavy duty IV Pole with provision for fixing it at all four locations.
• Dust Protective Fibre Base cover
• Battery Back Up

Optional Accessories:

• Mattress
• X-ray permeable backrest

HF810C : ICU Bed Motorised With Battery Backup

Technical Specifications:

• Major Features Include: Backrest, Knee rest, Height Adjustment, Trendelenburg/Reverse Trendelenburg, Cardiac Chair Position, Neuro Position, Zero Level Position maneuverable by four separate liner actuators which are operated through integrated panels on side rails.
• Back rest: 0-75°
• Knee rest: 0-35°
• Minimum Height: 450mm
• Maximum Height: 750mm
• Trendelenburg/Reverse Trendelenburg: 0-12°
• Dual Side Liver for Manual CPR
• Frame size: L 2060mm x W 900mm
• Overall Dimensions: L 2160mm x W 1060mm
• Epoxy coated mild steel structure with 4 section mattress platform made up of ABS top
• Detachable Polymer molded Head and foot bows giving a soothing look.
• 4 sectional polymer molded safety side rails with separate angle indicators.
• Corner PU buffers to absorb impact and reduce damage during handling.
• Twin wheel heavy duty Central Locking Castors of 125mm Dia for smooth mobility with control.
• Heavy duty IV Pole with provision for fixing it at all four locations.
• Battery Back Up

Optional Accessories:

• Mattress
• X-ray permeable backrest
• Bed Extension of 200mm

HF818 : ICU Bed 5 Function

Technical Specifications:

• Major Features Include: Backrest, Knee rest, Height Adjustment, Trendelenburg/Reverse Trendelenburg positions maneuverable by four separate liner actuators which are operated by Remote.
• Back rest: 0-75°
• Knee rest: 0-35°
• Minimum Height: 450mm
• Maximum Height: 750mm
• Trendelenburg/Reverse Trendelenburg: 0-12°
• Dual Side Liver for Manual CPR
• Frame size: L 2060mm x W 900mm
• Overall Dimensions: L 2160mm x W 1020mm
• Epoxy coated mild steel structure with 4 section mattress platform made up of CRCA sheet
• Detachable Polymer molded Head and foot bows giving a soothing look.
• 4 sectional polymer molded safety side rails with separate angle indicators.
• Corner PU buffers to absorb impact and reduce damage during handling
• Single wheel heavy duty Diagonal Locking Castors of 125mm Dia for smooth mobility with control.
• Heavy duty IV Pole with provision for fixing it at all four locations.

Optional Accessories:

• Mattress
• X-ray permeable backrest

HF819 : Dialysis Chair Cum Bed

Technical Specifications:

• Frame work made up of CRCA sheets and CRCA Tubes
• Major Features Include: Backrest, Egress, Height Adjustment, Trendelenburg/Reverse Trendelenburg, positions maneuverable by four separate liner actuators which are operated by Remote.
• Back rest: 0-75°
• Knee rest: 0-35°
• Minimum Height: 450mm
• Maximum Height: 750mm
• Trendelenburg/Reverse Trendelenburg: 0-12°
• Dual Side Liver for Manual CPR
• Frame size: L 1900 mm x W 900 mm
• The leg rest can decline downwards at 90º which is helpful to initiate the standing position of patient.
• The Bed Fully reclines to the horizontal position.
• Egress position to easily lift up the patient.
• 2 polymer molded safety side rails with angle indicators
• Detachable Polymer molded Head and foot bows giving a soothing look.
• Corner PU buffers to absorb impact and reduce damage during handling.
• Single wheel heavy duty Diagonal Locking Castors of 125mm Dia for smooth mobility with control.
• Heavy duty IV Pole with provision for fixing it at all four locations.

Optional Accessories:

• Mattress
• X-ray permeable backrest

HF816A : ICU Bed 5 Function Mechanical Super Deluxe

Technical Specifications:

• Major Features Include : Backrest, Knee rest, Height Adjustment, Trendelenburg/Reverse Trendelenburg, Position maneuverable by smooth crank mechanism with separate folding SS Handles.
• Back rest: 0-75°
• Knee rest: 0-35°
• Minimum Height: 600mm
• Maximum Height: 800mm
• Trendelenburg/Reverse Trendelenburg: 0-8°
• Frame size: L 2060mm x W 900mm
• Overall Dimensions: L 2160mm x W 1020mm
• Epoxy coated mild steel structure with 4 section mattress platform made up of CRCA Sheet.
• Detachable Polymer molded Head and foot bows giving a soothing look.
• 4 sectional polymer molded safety side rails with separate angle indicators.
• Corner PU buffers to absorb impact and reduce damage during handling.
• Single wheel heavy duty Diagnol Locking Castors of 125mm Dia for smooth mobility with control.
• Heavy duty IV Pole with provision for fixing it at all four locations.

Optional Accessories:

• Mattress

HF1004 : ICU Bed, Electric, 7 Function (With X-Ray Permeable Backrest) Column Model

Standard Features:

• ICU Bed (7 function) with electrically operated back rest tilting 0-70°, knee rest tilting 0-30°, trendelenburg tilting 0-12°, Reverse trendelenburg tilting 0-12°, mattress base ( lateral ) tilting to the left up to 15°, tilting to the right up to 15°
• Outer dimensions L2240*W1060mm (±10mm)(Side rails up), Mattress platform L1965*W920mm (±10mm), Bed Height H530-930mm (±10mm), Bed extension 200mm (±10mm). All function controlled with TiMotion motor.
• Split Guard rails: Guard rail PP- 4pcs provides protection to patient and additional side rails- 2 pcs near foot board offers more safety and support to patient while standing.
• Angle Gauge on Side rails display's the angle of back rest, Lateral tilt and Trendelenburg / Reverse Trendelenburg.
• Integrated Scale control panel: It is located at foot end and is protected against impacts .
• Removable mattress platform: PP Plastic board mattress platform can be easily removed for sterilization.
• With X-ray permeable PF backrest, Central nurse control system, 150mm noiseless castor with central locking.
• Embedded controls on both sides of guard rails, Linen shelf : At the bottom of foot end
• H/F boards locks: The board locks prevent accidental removal of the bed boards when steering or handing the bed
• X-ray cassette holder: Sliding construction allows the cassette to be inserted beneath the mattress platform from the side of the bed.
• Manual/Electric CPR: The Electric CPR operates with one key control. Manual CPR is equipped with damping device, which can be used single handedly and allows the back rest fall slowly to ensure the safety of the patient, in case of power failure.

Electric Parameters:

• Power supply : 220V/110V, 50HZ / 60HZ
• Maximum input : 1.6A, 450VA
• Protection against water and dust : IPX4
• Equipment security classification : Class II
• Level of protection against injury from electrical current : Applied part type BF
• Electric motor operation mode (load factor) : 10%, max. 2 min/18 min

Basic Features

HF1042A : ICU Bed Electric 5 Function With Weighing Scale

Standard Features:

• ICU Bed (5 function) with electrically operated back rest tilting 0-70°, knee rest tilting 0-30°, trendelenburg tilting 0-12°,Reverse trendelenburg tilting 0-12
• Outer dimensions L2240*W1060mm (±10mm) (Side rails up), Mattress platform L1965*W920mm (±10mm), Bed Height H520-920mm (±10mm), Bed extension 200mm (±10mm). All function controlled with TiMotion motor.
• Split Guard Rails: Guard rail PP- 4pcs provides protection to patient against fall.
• Angle Gauge on Side rails display the angle of back rest and Trendelenburg / Reverse Trendelenburg.
• Removable mattress platform: Plastic board mattress platform can be easily removed for sterilization.
• With X-ray permeable PF backrest, Central nurse control system, 150mm noiseless castor with central locking.
• Embedded controls on both sides of guard rails
• H/F boards locks :The board locks prevent accidental removal of the bed boards when steering or handing the bed
• X-ray cassette holder: Special sliding construction allows the cassette to be comfortably inserted beneath the mattress platform from the side of the bed. With Weighing Scale
• Manual/Electric CPR: The Electric CPR is easy and convenient to operate with one key control. Manual CPR is equipped with damping device, which can be used single handedly and allows the back rest fall slowly to ensure the safety of the patient, in case of power failure.

Electric Parameters:

• Power supply : 220V/110V, 50HZ / 60HZ
• Maximum input : 1.6A, 450VA
• Protection against water and dust : IPX4
• Equipment security classification : Class II
• Level of protection against injury from electrical current : Applied part type BF
• Electric motor operation mode (load factor) : 10%, max. 2 min/18 min

Basic Features

Item Code
HF1042B	Same as HF1042A but with chair position and without weighting scale feature. Also for variance in Bed height and angles refer chart.

HF1052A : ICU Bed Electric 5 Function

Standard Features:

• Comfy ICU Bed (5- function) with electrically operated electrically operated back rest tilting 0-70º, knee rest tilting 0-30°, trendelenburg tilting 0-12°,Reverse trendelenburg tilting 0-12,
• Outer dimensions L2220*W1060mm (±10mm)(Side rails up), Mattress platform L1960*W900mm (±10mm), Bed Height H450-790mm (±10mm), Bed extension 200mm (±10mm)
• Split Guard Rails: Guard rail PP- 4pcs provides protection to patient against fall.
• Angle Gauge on Side rails display the angle of back rest and Trendelenburg / Reverse Trendelenburg.
• Removable mattress platform : Plastic board mattress platform can be easily removed for sterilization.
• Protective corner bumpers
• Noiseless Luxury castors- Dia 125mmwith Central braking system.
• Provision for I.V. Rod on all sides of the bed.
• Manual/Electric CPR:The Electric CPR is easy and convenient to operate with one key control. Manual CPR is equipped with damping device, which can be used single handedly and allows the back rest fall slowly to ensure the safety of the patient, in case of power failure.

HF1052B : Same as HF1052A but with weighing scale.

Basic Features

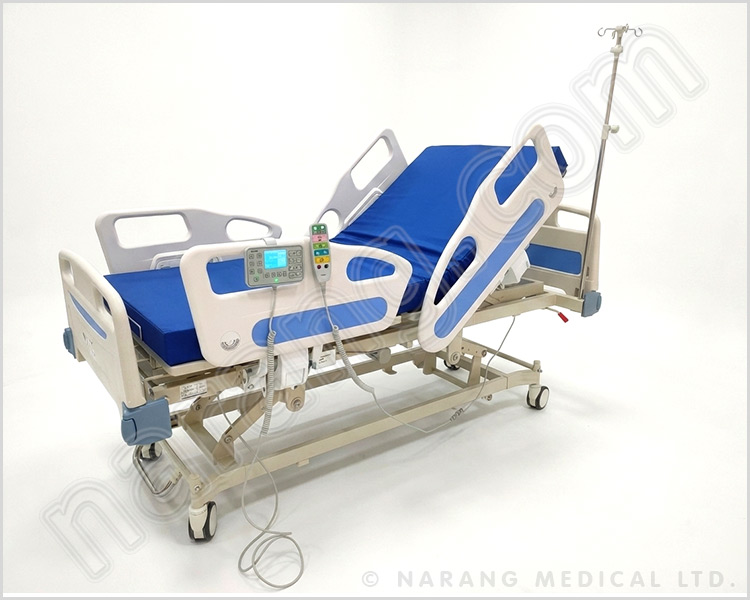

HF1052B : ICU Patient Bed With Mattress

Specifications:

• ICU 5 Function with electrically operated back rest 0-70 degree, Knee rest 0-30 degree
• Trendelenburg 0-12 degree, Reverse Trendelenburg 0-12 degree
• Size: L2220*W1030*H520/780（±20mm）
• Split guard rails: Guard rails PP- 4 Pcs provide protection to patient against fall.
• Angle Gauge on side rails display the angle of back rest and Trendelenburg / Reverse Trendelenburg.
• Fixed Mattress platform: Mild steel mattress platform welded, the back section is HPL board which is XRay permeable, other 3 section are steel.
• Protective corner bumpers.
• Noiseless castors Dia.125mm with central locking system.
• Provision for IV Rod on all sides of the bed.
• Manual & Electric CPR: The electric CPR is easy and convenient to operate with one key control. Manual CPR is equipped with damping device, which can be used single handedly and allows the back rest fall slowly to ensure the safety of the patient, in case of power failure.
• With Weighing scale, Nurse Control Panel and X-Ray permeable Backrest

With Mattress for ICU Bed

• Thickness:10 cm, the length and width will match the bed.
• Foam density: 30 kg / M3
• PU cover, fire retardant

HF1055 : ICU Bed Electric, 3 Function

Standard Features:

• ICU Bed 3 function with electrically operated remote controlled back rest:0-70±5°, knee rest:0-35±5°
• Size: L 2220mm × W 1060mm × H 440 - 760mm (Height Adjustable).
• All functions controlled with TiMOTION Motor, 220 - 240 V AC, 50 Hz. (110 V on request)
• HDPE removable & interchangeable Head and foot panel.
• Four easy lifting guardrails on each side, which are safe and reliable, and can be fixed upward and downward.
• Angle Gauge on Side rails display the angle of back rest and knees rest.
• Protective corner bumpers
• Epoxy coated mild steel frame work and 4 section perforated top.
• CPR position button for bed to reach “Zero” position quickly, with battery backup.
• 125mm dia noiseless castors with Central braking system.
• ABS Drainage hooks 2 each on both sides, Provision for I.V. Rod -4 (Corners).

HF1058 : ICU Bed Electric, 3 Function

Standard Features:

• ICU Bed 3 function with electrically operated remote controlled back rest:0-70±5º, knee rest:0-35±5°
• Size: L 2180mm × W 1060mm × H 365-665 mm (Height Adjustable).
• All functions controlled with TiMOTION Motor, 220 - 240 V AC, 50 Hz. (110 V on request)
• HDPE removable & interchangeable Head and foot panel.
• Collapsible Aluminium side railings
• Epoxy coated Mild steel frame work and 4 section perforated top
• Built-in emergency battery backup maintain all functions during electricity failure.
• 125mm Dia. Noiseless Luxury castors with Central braking system.
• Steel Drainage hooks 1 each on both sides, Provision for I.V. Rod -4 (Corners).

HF1065 : ICU Bed Electric, 2 Function

Standard Features:

• ICU Bed with electrically operated remote controlled Knee up 35°, back rest 70°
• Size: L 2180mm × W 1060mm × H 500mm
• All functions controlled with TiMOTION Motor from Taiwan Power Device (Actuator), 220 - 240 V AC, 50 Hz. (110 V on request).
• HDPE removable & interchangeable Head and foot panel.
• Four easy lifting guardrails on each side, which are safe and reliable, and can be fixed upward and downward.
• Angle Gauge on Side rails display the angle of back rest and knees rest.
• Protective corner bumpers
• Epoxy coated mild steel frame work and 4 section perforated top.
• 125mm dia noiseless castors with Central braking system.
• ABS Drainage hooks 2 each on both sides, Provision for I.V. Rod -4 (Corners).

HF1067 : ICU Bed Electric, 2 Function

Standard Features:

• ICU Bed with electrically operated remote controlled Knee up 35°, back rest 70°
• Size: L 2180mm × W 1060mm × H 500mm
• All functions controlled with TiMOTION Motor from Taiwan Power Device (Actuator), 220 - 240 V AC, 50 Hz. (110 V on request).
• HDPE removable & interchangeable Head and foot panel.
• With collapsible Aluminium side railings.
• Protective corner bumpers
• Epoxy coated mild steel frame work and 4 section perforated top.
• 125mm dia noiseless castors with Central braking system.
• Steel Drainage hooks 1 each on both sides, Provision for I.V. Rod -4 (Corners).

HF1134A : ICU Bed Manual 3 Function

Standard Features:

• ICU Bed (3 function) with manually operated back rest 0-70°, knee rest 0-25°
• Size: L 2180mm ×W1060mm × H 430-750mm (Adjustable Height).
• Loading capacity : 200 kg
• HDPE removable & interchangeable Head and foot panel.
• Four easy lifting guardrails on each side, which are safe and reliable, and can be fixed upward and downward.
• Angle Gauge on Side rails display the angle of back rest and knees rest.
• Protective corner bumpers
• Epoxy coated mild steel frame work and 4 section perforated top.
• 125mm dia noiseless castors with Central braking system.
• ABS Drainage hooks 2 each on both sides, Provision for I.V. Rod -4 (Corners).

HF1134B : Same as HF1134A but with Steel folding railings.

HF1134C : ICU Bed Manual 3 Function

Standard Features:

• ICU Bed (3 function) with manually operated back rest 0-70°, knee rest 0-25°
• Size: L 2180mm ×W1060mm × H 500-705mm (Adjustable Height).
• Loading capacity : 200 kg
• HDPE removable & interchangeable Head and foot panel.
• Collapsible Aluminium side railings.
• Protective corner bumpers
• Epoxy coated mild steel frame work and 4 section perforated top.
• 125mm dia noiseless castors with Central braking system.
• Steel Drainage hooks 1 each on both sides, Provision for I.V. Rod -4 (Corners).

HF1047B : ICU Bed 5 Function Electric

Standard Features:

• ICU Bed (Five function) with electrically operated remote controlled back rest tilting 0-70°, knee rest tilting 0-35°, trendelenburg tilting 0- 12°, Reverse trendelenburg tilting 0-12°
• Size: L 2110mm × W 990mm × H 500-790mm (Adjustable Height).
• All functions controlled Timotion motor, 220 - 240 V AC, 50 Hz. (110 V on request).
• Build in control panel on both sides of guard rails.
• HDPE removable & interchangeable Head and foot panel.
• Four easy lifting guardrails on each side, which are safe and reliable, and can be fixed upward and downward.
• Angle Gauge on Side rails display the angle of back rest and knees rest.
• Protective corner bumpers
• Epoxy coated mild steel frame work and 4 section perforated top.
• CPR position button for bed to reach “Zero” position quickly, with battery backup.
• 125mm dia noiseless castors with Central braking system.
• ABS Drainage hooks 2 each on both sides, Provision for I.V. Rod -4 (Corners).

HF1047C : Same as HF1047B but without build in control panel.

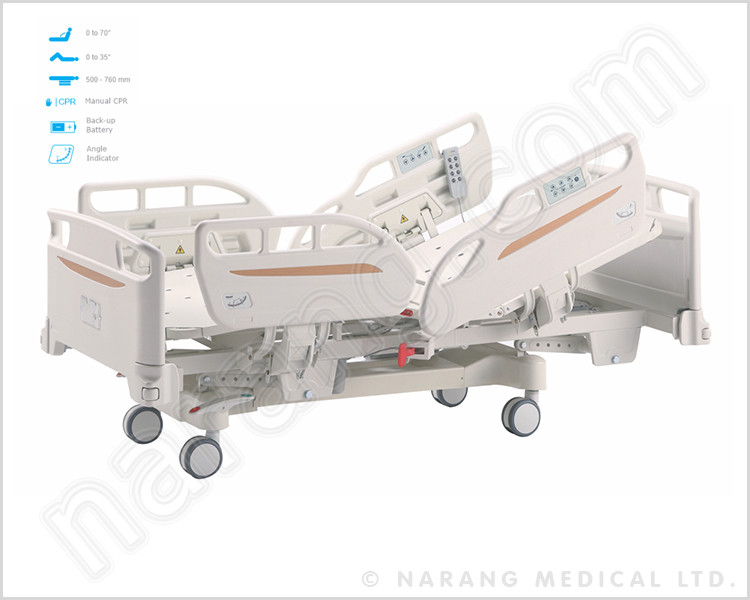

HF1126B : ICU Bed 3 Function Electric

Standard Features:

• ICU Bed (3 function) with electrically operated remote control back rest 0-70°, knee rest 0-35° and height position.
• Size: L 2110mm × W 990mm × H 500-760mm (Height Adjustable).
• All functions controlled with TiMOTION Motor, 220 - 240 V AC, 50 Hz. (110 V on request).
• Build in control panel on both sides of guard rails.
• HDPE removable & interchangeable Head and foot panel.
• Four easy lifting guardrails on each side, which are safe and reliable, and can be fixed upward and downward.
• Angle Gauge on Side rails display the angle of back rest and knees rest.
• Protective corner bumpers
• Epoxy coated mild steel frame work and 4 section perforated top.
• CPR position button for bed to reach “Zero” position quickly, with battery backup.
• 125mm dia noiseless castors with Central braking system.
• ABS Drainage hooks 2 each on both sides, Provision for I.V. Rod -4 (Corners).

HF1127C : ICU Bed 3 Function Electric

Standard Features:

• ICU Bed (3 function) with electrically operated remote controlled back rest 0-70°, knee rest 0-35° position.
• Size: L 2100mm × W 980mm × H 365-655mm. (Adjustable Height)
• All functions controlled with TiMOTION Motor Power Device (Actuator), 220 - 240 V AC, 50 Hz. (110 V on request).
• HDPE removable & interchangeable Head and foot panel.
• Collapsible Aluminium side railings.
• Epoxy coated mild steel frame work and 4 section perforated top.
• 125mm Dia. Noiseless Luxury castors with Central braking system
• Steel Drainage hooks 1 each on both sides, Provision for I.V. Rod -4 (Corners).

HF1068 : ICU Bed 2 Function Electric

Standard Features:

• ICU Bed with electrically operated remote controlled Knee up 35°, back rest 70°
• Size: L 2100mm × W 980mm × H 480mm
• All functions controlled with TiMOTION Motor from Taiwan Power Device (Actuator), 220 - 240 V AC, 50 Hz. (110 V on request).
• HDPE removable & interchangeable Head and foot panel
• Epoxy coated mild steel frame work and 4 section perforated top.
• Collapsible Aluminium side railings.
• 125mm Dia. Noiseless Luxury castors with individual brake.
• Steel Drainage hooks 1 each on both sides, Provision for I.V. Rod -4 (Corners).

HF1136A : ICU Bed Manual 3 Function

Standard Features:

• ICU Bed (3 function) with manually operated back rest 0-80°, knee rest 0-35° and height position.
• Size: L 2100mm × W 960mm × H 500-705mm (Adjustable Height).
• HDPE removable & interchangeable Head and foot panel.
• Collapsible Aluminium side railings.
• Epoxy coated mild steel frame work and 4 section perforated top.
• 125mm dia noiseless castors with Central braking system.
• Steel Drainage hooks 1 each on both sides, Provision for I.V. Rod -4 (Corners).

HF1136B : Same as HF1136A but castors with individual brake.

HF101 : ICU Bed 3 Function Electric Cum Manual

Standard Features:

• ICU Bed (3 function) with electrically operated remote controlled back rest 0-75º, knee rest 0-35°, High - Low 550-750mm.
• Back rest, Knee rest and High - low can be operated manually also.
• Size: L 2030mm × W 900mm × H 550-750mm (Adjustable Height).
• ABS removable & interchangeable Head and foot panel, with safety lock and roller bumpers.
• Epoxy coated mild steel frame work and 4 section mattress platform made up of CRCA M.S. Sheet
• Provision for I.V. Rod on four locations.
• Collapsible Side Rails
• 125mm Dia. castors with diagonal locking

HF102 : ICU Bed Deluxe Mechanical 5 Function

Standard Features:

• ICU Bed (5 function) with back rest 0-75º, knee rest 0-35°, High - Low 600-800mm, Trendlenburg : 0-8º , Reverse Trendlenburg 0-8º maneuverable by 4 separate crank mechanisms from foot end.
• Size: L 2060mm × W 900mm × H 600-800mm (Adjustable Height).
• Epoxy coated mild steel structure with 4 section mattress platform made up of CRCA M.S. Sheet.
• Detachable SS Frame Head and foot bows with laminated panels and roller bumpers.
• Provision for I.V. Rod on four locations.
• Mild Steel Collapsible Side Railings.
• 125mm Dia. castors with diagonal locking

HF817 : ICU Bed 5 Function Electric With Embedded Panel

Specifications/Details:

• ICU Bed (5 function) with back rest 0-75°, knee rest 0-35°, High - Low 450-750mm, Trendelenburg : 0-12°, Reverse Trendelenburg 0-12°
• Frame size: L 2030mm x W 1060mm x H450-750mm
• Epoxy coated mild steel structure with 4 section mattress platform made up of CRCA Sheet.
• Detachable Polymer moulded Head and foot bows with corner PU buffers.
• 125mm Dia Castors with central locking
• Provided with 4 sectional polymer moulded safety side rails with separate angle indicators.
• Provided with heavy duty saline stand with provision for fixing it at all four locations.
• Back rest, knee rest, trendelenburg / reverse trendelenburg, high – low, cardiac chair position and one touch zero level (CPR) position maneuverable by 4 separate actuator operated by engraved touch panels on both foot bow and side railings.
• Dual side manual CPR
• Optional : Mattress, X-ray permeable back rest.

HF810 : ICU Bed 5 Function Electric With Chair Position With Twin Remote

Specifications/Details:

• Size 2150 mm (L) X 980 mm (W) Height 490 - 780 mm (Without Mattress)
• Four section Top Made of Perforated CRCA Sheet & Bed frame made of CRCA Tubes.
• Detachable ABS Head and Foot Boards.
• Collapsible ABS Guardrails.
• Manual CPR (quick release)
• 125mm Castors (two with Brake)
• Pre-treated Epoxy Powder Coated.
• Electrical Lifting system with Advanced Motors With Nursing Control Panel and remote.
• Provision for I.V Pole at four locations, Holder for urine bag.
• Positions obtained by Remote: Hi-Low (490-780mm), Knee rest elevation (0-35°), Back rest elevation (0-75°), Trendelenburg (0-12°) & Reverse Trendelenburg (0-12°)
• Optional : Mattress

HF816 : ICU Bed 5 Function Mechanical, Super Deluxe

Specifications/Details:

• ICU Bed (5 function) with back rest 0-75º, knee rest 0-35°, High - Low 600-800mm, Trendelenburg : 0-8º , Reverse Trendelenburg 0-8º maneuverable by 4 separate crank mechanisms from foot end.
• Size: L 2030mm × W 900mm × H 600-800mm (Adjustable Height).
• Epoxy coated mild steel structure with 4 section mattress platform made up of CRCA M.S. Sheet.
• Detachable ABS Head and foot bows and roller bumpers.
• Four easy lifting guardrails (2 on each side), which can be fixed upward and downward.
• Provision for I.V. Rod on four locations.
• 125mm Dia. twin castors with diagonal locking
• Provision for cylinder cage.
