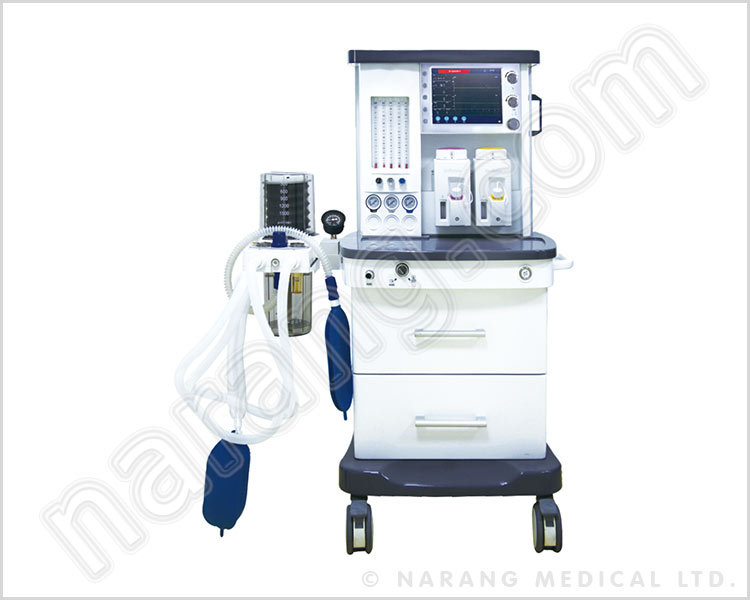

Basic Features:
- 10.4" TFT LCD screen displays the Ventilation parameters, Alarm information and Oscillogram.
- Mounted with High precision 5 mechanical flow meter, instant display fresh gas flow to your patient Electronic control for all parameters Integrated breathing circuit design.
- Rapid oxygen supply button and ACGO suitable for emergency situation and revival after operation.
- Real time oscillogram and high precision O2 concentration detection function included.
- Vaporizer with temperature, pressure, flow compensation and self-lock function, With 2 Vaporizers, Choose any two Agent from Halothane, Isoflurane, Enflurane and Sevoflurane.
- Gases : O2 /Air or O2 /N2O
Optional : Patient monitor, Anesthetic gas monitor, AGSS,Yoke, ACGO, ETCO2 module on screen.
| Ventilation mode |
IPPV (VCV)/A/C (SIPPV) SIMV / MANUAL / SIGH |
| Frequency |
1bpm - 100bpm |
| I/E |
0.2s - 6s 2:1 - 1:6 |
| Tidal Volume VT |
0ml - 1500ml |
| MV |
>18L/min |
| PEEP |
0cmH2O - 30cmH2O |
| PTr |
-20 2O - 20cmH2O |
| Ftr, Pc, TIP |
(OFF,0.5L/min - 30L/min), (-), (0-3s) |
| Apnea Ventilation |
OFF,5s - 60s |
| SIGH |
1/100 - 5/100 |
| Graphical display |
1.P-T(pressure – time)
2.F-T(flow – time) " |
