HF1151B : Fowler Bed Manual

Standard Features:

• Fowler Bed with mechanically operated back rest and knee rest by super-smooth crank mechanism.
• Size: L 2180mm × W 1060mm × H 500mm.
• HDPE removable & interchangeable Head and foot panel.
• Four easy lifting guardrails on each side, which are safe and reliable, and can be fixed upward and downward.
• Angle Gauge on Side rails display the angle of back rest and knees rest.
• Protective corner bumpers
• Epoxy coated mild steel frame work and 4 section perforated top.
• 125mm dia noiseless castors with Central braking system.
• ABS Drainage hooks 2 each on both sides, Provision for I.V. Rod -4 (Corners).

HF1154 : Fowler Bed Manual

Standard Features:

• Fowler Bed with mechanically operated back rest and knee rest by super-smooth crank mechanism.
• Size: L 2180mm × W 980mm × H 500mm.
• HDPE removable & interchangeable Head and foot panel.
• Collapsible Aluminium side railings.
• Epoxy coated mild steel frame work and 4 section perforated top.
• 125mm dia noiseless castors with Central braking system.
• Steel Drainage hooks 1 each on both sides, Provision for I.V. Rod -4 (Corners).

HF1154A : Same as HF1154 but castors with individual brake.

HF1153B : Fowler Bed Manual

Standard Features:

• Fowler Bed with mechanically operated back rest and knee rest by super-smooth crank mechanism.
• Size: L 2110mm × W 990mm × H 500mm.
• HDPE removable & interchangeable Head and foot panel.
• Four easy lifting guardrails (2 on each side), which are safe and reliable, and can be fixed upward and downward.
• Epoxy coated mild steel frame work and 4 section perforated top.
• 125mm dia noiseless castors with Central braking system.
• ABS Drainage hooks 2 each on both sides, Provision for I.V. Rod -4 (Corners).

HF1177 : Fowler Bed Manual

Standard Features:

• Fowler Bed with mechanically operated back rest and knee rest by super-smooth crank mechanism.
• Size: L 2100mm × W 980mm × H 500mm.
• HDPE removable & interchangeable Head and foot panel.
• Collapsible Aluminium side railings.
• Epoxy coated mild steel frame work and 4 section perforated top.
• 125mm dia noiseless castors with individual brake.
• Provision for I.V. Rod -4 (Corners).

HF1177A : Same as HF1177, but with food tray and castors with individual brake.

HF1177B : Same as HF1177, but with food tray and with Central braking system.

HF1709a : Standard Fowler Bed

Standard Features:

• Standard fowler bed with mechanically operated back rest and knee rest by crank mechanism.
• Size: 2030 × 900 × 500 mm.
• Epoxy coated mild steel frame work and 4 section top.
• Stainless steel head & foot panels.
• Four swivel castor (all with individual brakes).
• Provision for I.V. Rod.
• Freight saving knock-down construction.

HF1711 : Standard Fowler Bed

Standard Features:

• Standard fowler bed with mechanically operated back rest and knee rest by crank mechanism.
• Size: 2030 × 900 × 530 mm.
• Epoxy coated mild steel frame work and 4 section top.
• Tubular head & foot bows made of stainless steel.
• Mounted on protective stumps.
• Provision for I.V. Rod.
• Freight saving knock-down construction.

HF1725 : Standard Fowler Bed

Standard Features:

• Standard fowler bed with mechanically operated back rest and knee rest by crank mechanism.
• Size: 2030 × 900 × 500 mm.
• Epoxy coated mild steel frame work & 4 section top..
• Mounted on protective stumps.
• Provision for I.V. Rod.
• Freight saving knock-down construction.

HF105C : Fowler Bed Super Deluxe

Specifications/Details:

• Fowler bed with detachable polymer molded Head and Foot bows.
• Size: 2060 mm L X 900 mm W X 600 mm H
• Backrest Tilt: 0 - 75°, Knee rest Tilt: 0 – 35°
• Backrest and Knee rest positions are maneuverable by smooth crank mechanism with separate folding SS Handle.
• Epoxy coated Mild Steel Structure with 4 sections made of CRCA Sheet.
• Provided with Single wheel heavy duty Diagonal Locking Castors Dia 100 mm for smooth mobility with control.

HF105B : Fowler Bed Deluxe

Specifications/Details:

• Fowler bed with detachable SS Frame Head and Foot bows with laminated panels.
• Size: 2060 mm L X 900 mm W X 600 mm H
• Backrest Tilt: 0 - 75°, Knee rest Tilt: 0 – 35°
• Backrest and Knee rest positions are maneuverable by smooth crank mechanism with separate folding SS Handle.
• Epoxy coated Mild Steel Structure with 4 sections made of CRCA Sheet.
• Provided with Single wheel heavy duty Diagonal Locking Castors Dia 100 mm for smooth mobility with control.

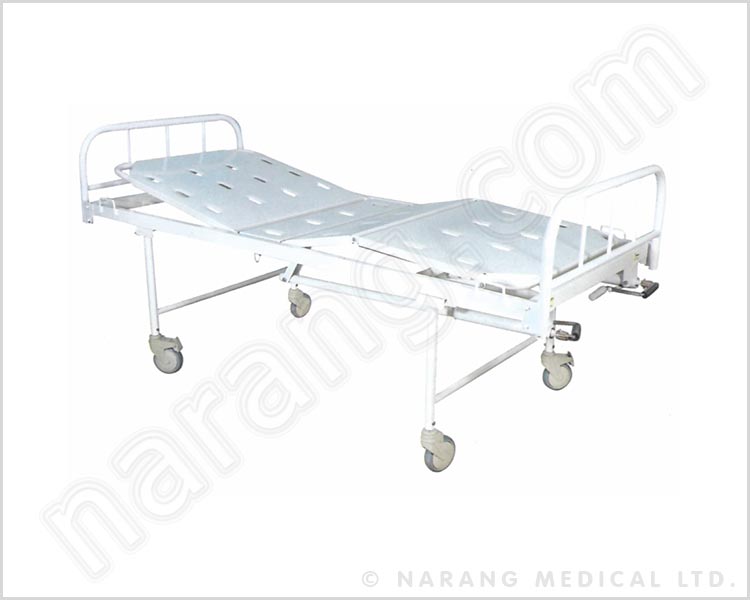

HF106C : Fowler Bed General

Specifications/Details:

• Fowler bed with detachable Head and Foot bows.
• Size: 2060 mm L X 900 mm W X 600 mm H
• Backrest Tilt: 0 - 75°, Knee rest Tilt: 0 – 35°
• Backrest and Knee rest positions are maneuverable by smooth crank mechanism with separate folding SS Handle.
• Epoxy coated Mild Steel Structure with 4 sections made of CRCA Sheet.
• Provided with Single wheel heavy duty Diagonal Locking Castors Dia 100 mm for smooth mobility with control.

HF105A : Fowler Bed Super Deluxe

Specifications/Details:

• Fowler bed with detachable Plastic Head and foot bows.
• Size: L 2060mm × W 900mm × H 600mm
• Back rest 0-75º, Knee rest 0-35°
• Epoxy coated mild steel structure with 4 section mattress platform made up of CRCA M.S. Sheet.
• 2 Separate crank mechanisms for back rest and knee rest respectively.
• Stainless Steel drop down side rails.
• Provision for I.V. Rod on four locations.
• 125mm Dia. castors 2 with brake

HF106A : Fowler Bed Semi Deluxe

Specifications/Details:

• Fowler bed with detachable SS frame Head and foot bows with laminated panels and roller bumpers.
• Size: L 2100mm × W 900mm × H 600mm
• Back rest 0-75º, Knee rest 0-35°
• Epoxy coated mild steel structure with 4 section mattress platform made up of CRCA M.S. Sheet.
• 2 Separate crank mechanisms for back rest and knee rest respectively.
• Stainless Steel drop down side rails.
• Provision for I.V. Rod on four locations.
• 125mm Dia. castors 2 with brake
