Oxygen Generator System

Technical Specifications :

• Generates pure medical Oxygen 93+/- 3% in accordance to European Pharmacopoeia.
• With 4-6 bar pressure suitable for ICU/ OT use.
• Regular and continuous supply of oxygen for the hospital.
• Error free automatic controlled System.
• Cylinder filling facility available using booster unit
• Handy and can be transported / relocated easily
• Models available from 20LPM to 1512LPM.
• Profitable, as capital cost can be recovered within few months of operation.

OXY021 : Oxygen Concentrator

Technical Specifications :

• Description : Oxygen Concentrator 5L
• Oxygen flow : 0.5 – 5 LPM
• Oxygen Concentration : 93% ± 3%
• Functions : Total work hour display, Compressor auto cut off at high temperature, High & low pressure alarm function. Low oxygen concentration alarm function. Auto shutdown
• Optional : Nebulizer, double flow
• Power Consumption : 300 W
• Output Pressure : 45kPa ± 4.5kPa(6.52psi ± 0.65psi)
• Pressure Relief Valve : 36.25 psi ± 3.63 psi (250 kPa ± 25 kPa)
• Operating noise (dB) : ∠ 53dB (A)
• Operating temp : 10ºC – 35ºC
• Operating Altitude : 0-1828 M (0-6000 ft.)
• Net weight : 27kg
• Gross Weight : 29kg
• Dimensions (LxWxH) : 44.5 x 37.2 x 68 cm
• Carton size (LxWxH) : 49.5 x 43 x 78 cm
• Equip Classification and Type : Class II, Type BF
• Power Supply : AC 220V ± 22V/50Hz or 110V ± 10V / 60 Hz
• Storage Conditions : Temperature - 20ºC to 60ºC, Humidity 10%~ 90%, no condensation, Atmospheric pressure 10.15 psi ~ 15.37ps

OXY035 : Oxygen Concentrator

Technical Specifications:

• Description : Oxygen Concentrator 10L
• Oxygen flow : 1 – 10 LPM
• Oxygen Concentration : 93% ± 3%
• Functions : Total work hour display, Compressor auto cut off at high temperature, High & low pressure alarm function. Low oxygen concentration alarm function. Auto shutdown.
• Optional : Nebulizer, double flow
• Power Consumption : 425 W
• Output Pressure : 62kPa±4.5kPa(8.99psi±0.65psi)
• Pressure Relief Valve : 36.25 psi ± 3.63 psi (250 kPa ± 25 kPa)
• Operating noise (dB) : ∠ 60dB (A)
• Operating temp : 10ºC – 35ºC
• Operating Altitude : 0-1828 M (0-6000 ft.)
• Net weight : 33kg
• Gross Weight : 37.5kg
• Dimensions (LxWxH) : 52 x 43.5 x 73 cm
• Carton size (LxWxH) : 57 x 49.5 x 80.5 cm
• Equip Classification and Type : Class II, Type BF
• Power Supply : AC 220V ± 22V/50Hz or 110V ± 10V / 60 Hz
• Storage Conditions : Temperature - 20ºC to 60ºC, Humidity 10%~ 90%, no condensation, Atmospheric pressure 10.15 psi ~ 15.37ps

OXY041 : Oxygen Concentrators

• Description : Oxygen Concentrator 5L
• Oxygen flow : 0.5 – 5 LPM
• Oxygen Concentration : 93% ± 3%
• Functions : Total work hour display, Power failure alarm, Compressor fault alarm
• Optional : Nebulizer, Low Oxygen concentration alarm, Oxygen display, pressure fault alarm, double flow
• Power Consumption : >320 W
• Output Pressure : 0.05 – 0.07 Mpa
• Pressure Relief Valve : 40 psi ± 5 psi (276 kPa ± 34.5 kPa)
• Operating noise (dB) : ∠ 45dB (A)
• Operating temp : 5ºC – 40ºC
• Operating Altitude : 0-2000 M (0-6561 ft.)
• Net weight : 35 lbs (15.9 kg)
• Gross Weight : 43 lbs (19.6 kg)
• Dimensions (LxWxH) : 43 x 32 x 62 cm
• Carton size (LxWxH) : 46 x 36 x 70 cm
• Equip Classification and Type : Class II, Type BF
• Power Supply : AC 220V ± 22V/50Hz or 110V ± 10V / 60 Hz
• Storage Conditions : Temperature - 20ºC to 55ºC, Humidity ∠90%, Atmospheric pressure 12.5 psi ~ 15.4psi (86kPa ~ 106 kPa)

OXY045 : Oxygen Concentrators

• Description : Oxygen Concentrator 10L
• Oxygen flow : 1 – 10 LPM
• Oxygen Concentration : 93% ± 3%
• Functions : Total work hour display, Power cut alarm, Compressor fault alarm
• Optional : Nebulizer, pressure fault alarm, double flow, flow splitter from 3-5 ways
• Power Consumption : ∠ 720 W
• Output Pressure : 0.05 – 0.07 Mpa
• Pressure Relief Valve : 40 psi ± 5 psi (276 kPa ± 34.5 kPa)
• Operating noise (dB) : ∠ 55dB (A)
• Operating temp : 5ºC – 40ºC
• Operating Altitude : 0-2000 M (0-6561 ft.)
• Net weight : 44 lbs (20 kg)
• Gross Weight : 50 lbs (23 kg)
• Dimensions (LxWxH) : 43 x 32 x 62 cm
• Carton size (LxWxH) : 46 x 36 x 70 cm
• Equip Classification and Type : Class II, Type BF
• Power Supply : AC 220V ± 22V/50Hz or 110V ± 10V / 60 Hz
• Storage Conditions : Temperature - 20ºC to 55ºC, Humidity ∠90%, Atmospheric pressure 12.5 psi ~ 15.4psi (86kPa ~ 106 kPa)

OXY051 : Oxygen Concentrators 5L

• Description : Oxygen Concentrator 5L
• Oxygen flow : 1-5LPM
• Oxygen Concentration : 1~5 LPM 93% ± 2%
• Functions : Running 20000 hours without stop, Power failure alarm
• Optional : Nebulizer function, Low oxygen concentration alarm, oxygen percentage indicator alarm, Low oxygen : 82%, very low oxygen : 72%
• Power Consumption : 285W
• Output Pressure : 8.5 ± 5 psi (58.6 kpa)
• Operating noise (dB) : <45 dBA
• Operating temp : 50ºF to 95ºF (10ºC to 35 ºC)
• Operating Altitude : Up to 12,000 ft (3657 m)
• Weight : 16.6 kg
• Dimensions (LxWxH) : 373 * 322 * 570
• Operating humidity : Up to 95% relative humidity
• Equip Classification and Type : Class II, Type BF
• Power Supply : 220V / 115V or 50Hz / 60 Hz
• Storage / transport humidity : 10% to 100% up to 95% relative humidity
• Storage temperature : 104ºF to 158 ºF (-40ºC to 70ºC)

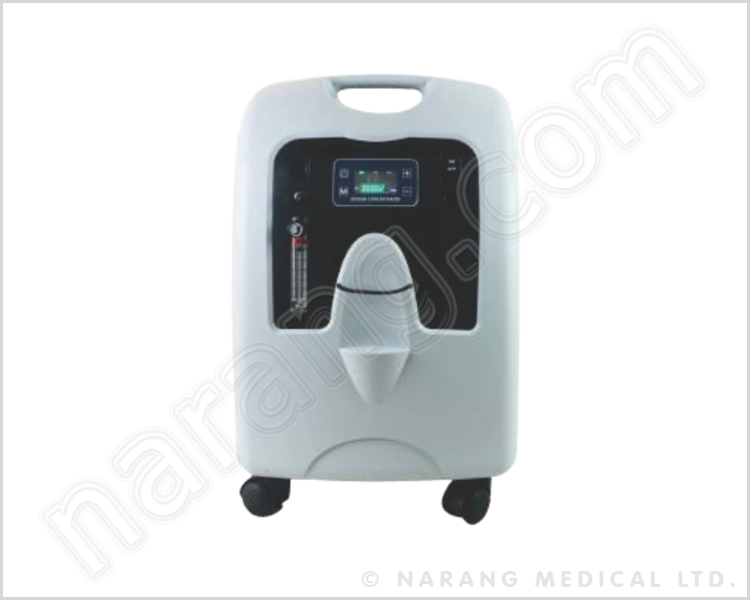

OXY055 : Oxygen Concentrators 10L

• Description : Oxygen Concentrator 10L
• Oxygen flow : 1-10LPM
• Oxygen Concentration : 1~9 LPM 93% ± 3%, 9~10 LPM 90% ± 3%
• Functions : Running 20000 hours without stop, Power failure alarm
• Optional : Nebulizer function, Low oxygen concentration alarm, oxygen percentage indicator alarm, Low oxygen : 82%, very low oxygen : 72%
• Power Consumption : 650W (Average)
• Output Pressure : 8.5 to 21 psi (58.6 to 144.7 kpa)
• Operating noise (dB) : <55 dBA
• Operating temp : 50ºF to 95ºF (10ºC to 35 ºC)
• Operating Altitude : Up to 12,000 ft (3657 m)
• Weight : 19.6 kg
• Dimensions (LxWxH) : 373 * 322 * 570
• Operating humidity : Up to 95% relative humidity
• Equip Classification and Type : Class II, Type BF
• Power Supply : 220V / 115V or 50Hz / 60 Hz
• Storage / transport humidity : 10% to 100% up to 95% relative humidity
• Storage temperature : 104ºF to 158 ºF (-40ºC to 70ºC)

OXY060 : Oxygen Concentrator With Remote Control

Features:

• With Remote Control
• Alarm for low oxygen, Compressor failure, Power out, pressure cycle failure
• Built in Oximeter to monitor real time SPO2
• LCD screen for display
• Low Noise

Technical Specifications:

• Flow range : 0.5~3L/min
• Oxygen concentration : 93%±3%
• Output pressure : 20~50kPa Input power : 320VA
• N.W.: 16.5kg
• Operation noise level : ≤46dB(A)
• Size : 50x21x64cm
