LED OT Lights - Orange Series

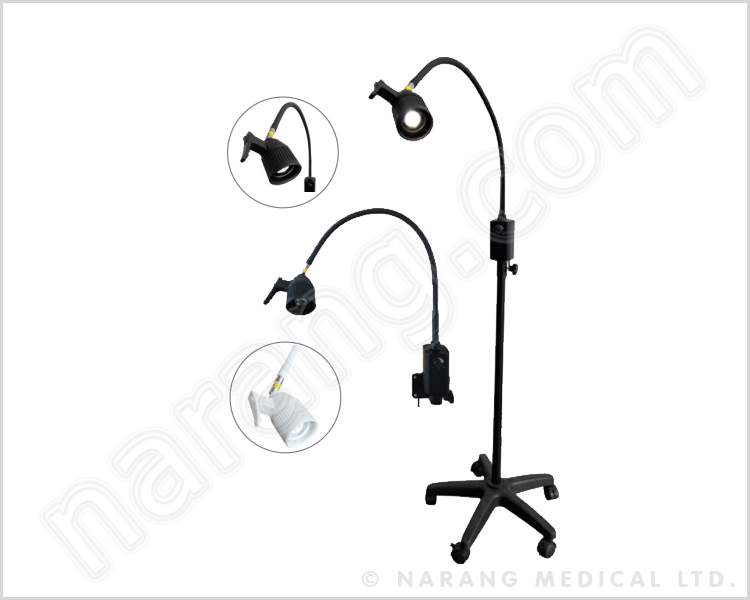

ELED10S - LED Examination Light
Specification :
  • Economical, Compact, Ultra-high brightness focused, flexile light
  • On /Off switch integrated with handle
  • Articulated arm / Extended handle facilitate position of light.
  • IR-free technology from LED light source reduces heat sensation
  • LED service life 40 times longer than Halogen bulb
  • Low energy consumption : 1/3 less than conventional Halogen system
  • Multi-functional control systems with various installation range such as Floor / wall / surgical table /desk / etc.
  • Easy maintenance, hygienic and cleaning requirements via spray disinfection.
  • Suitable for GP practices, E.N.T. Ophthalmology, Gynecology, small theatre, minor operations and other surgery use.
Technical specifications:
Light Intensity > 70,000 Lux @ D=30 cm / > 40,000 Lux @ D=50cm
Control System step less brightness dimmer
Flexiable arm 76cm length flexible plastic sleeve goose neck.
Lamphead Diameter = 75mm, Length = 110mm
Diameter of Light Spot 80-150mm @ D=30-50 cm
Light source 1 x LED bulb
LED life span > 50,000 hours
Color Temperature 4500K – 5500K
Input Connected Load 100-260V 50/60MHz
Power consumption 3W
Class of Protection Class II
Mounting Options Mobile, Table, Wall & Rail

ELED10W : Same as ELED10S, but LED Light wall mounted.

ELED10D : with Digital light touch light control system

ELED10SS : with touchless control system


ELED20S - LED SURGICAL LIGHT
Specification :
  • “Daylight” illumination easier diagnostic and treatment.
  • Articulated arm ensures easy movement of the light and required positioning.
  • Full aluminum lamp head integrated handle, smooth and continuous surfaces are easy to wipe clean and disinfect.
  • Standard dimmer control, with other optional gesture controls and battery make the control more comfortable and efficient.
  • uitable for Minor surgical procedures, wound care, dermatological examinations etc
  • Multi-functional control systems with various installation range such as Floor /wall/ surgical table /desk / etc.
  • Standard detachable power coated steel base with 5 x Antistatic and lockable plastic casters.
Technical specifications:
Light Intensity > 78,000 Lux @ D=30 cm / > 40,000 Lux @ D=50cm > 20,000 Lux @ D=100 cm
Control System step less brightness dimmer control
Flexiable arm 76cm length flexiable plastic sleeve goose neck
Lamphead Diameter = 80mm, handle length = 68mm
Diameter of Light Spot 70mm @ D=30cm, 80mm @ D=50cm, 200mm @ D=100cm
Light source 6 x LED bulbs with alluminium PCB and lens
LED life span > 50,000 hours
Color Temperature 4800K – 5500K
Input Connected Load 100-260V 50/60MHz
Power consumption 6W
Class of Protection Class II
Mounting Options Mobile, Table, Wall & Rail

ELED20W : same as ELED20S but wall mounted.

ELED20D : with Digital light touch light control system

ELED20SS : with touchless control system


ELED25S - LED MEDICAL PROCEDURE LIGHT
Technical specifications :
  • High Performance, with unprecedented Illumination and Radiance.
  • 360º flexible goose neck arms for easy movement and position for light.
  • Light intensity adjustable by means of digital key-pad control on the lamp head.
  • Integrated handle allows easy accessibility from any position to adjust the light focus
  • Full strong smooth plastic with continuous surfaces are easy to wipe clean and disinfect.
  • Suitable for ICU, Recovery Room, Minor surgery, Gynecology / Obstetrics
  • Standard detachable powder coated steel base with 5 pcs luxury Antistatic and lockable plastic casters.
Technical specifications:
Light Intensity > 78,000 Lux @ D=30 cm / > 60,000 Lux @ D=50cm, > 20,000 Lux @ D=100 cm
Control System Digital key-pad control on the lamp head
Flexiable arm 76cm length flexible plastic sleeve goose neck.
Lamphead Diameter = 89mm
Diameter of Light Spot 90mm @ D=30cm, 120mm @ D=50cm, 200mm @ D=100cm
Light source 7 x LED bulbs with aluminum PCB and lens
LED life span > 50,000 hours
Color Temperature 4800K – 5500K
Input Connected Load 100-260V 50/60MHz
Power consumption 10W
Class of Protection Class II
Mounting Options Mobile, Table, Wall & Rail (plug hole : 22mm)

ELED42 - LED EXAMINATION LIGHT, MOBILE - 12 BULBS
Technical specifications
  • Color Temperature : 4000 K ± 200
  • Illumination : 20000 ~ 80000 Lux
  • Spot Diameter : 110 mm
  • No. of Bulbs : 12
  • Bulb Life : 50,000 hours
  • Power Supply : 100-240 V, 50/60 Hz

ELED42B : Same as ELED42 but with Battery Backup.

ELED42C : Same as ELED42 but ceiling mounted.

ELED42W : Same as ELED42 but wall mounted.


ELED45 - LED EXAMINATION LIGHT, MOBILE - 7 BULBS
Technical specifications
  • Color Temperature : 4500 K ± 500
  • Illumination : ≥ 30,000
  • Height Adjustment distance (mm) : ≥ 400
  • Left/ Right movement : 180°
  • Front/ Back movement : 180°
  • No. of Bulbs : 7
  • Input Power : 20 ± 10%
