ECG Machine

NET has collaborated with leading cardiologists across the world to develop ECG products to high standards of quality. Electrocardiography is the process of recording the electrical activity of the heart over a period of time using electrodes placed on the skin.



DP2015 - Hand Held Single Channel ECG

Specifications/Details :

  • Input circuit: Floating
  • Calibrating Voltage :1mV
  • Input current: <50mA
  • CMRR: >103dB
  • A/D: 12bit
  • Frequency Response: 0.05Hz--150Hz
  • Filter: AC 50/60Hz EMG: 35-45Hz
  • Skin Voltage Tolerance: +300mV
  • Sensitivity Setting 5, 10, 20mm/mV, conversion deviation 25%
  • Noisy Level: ≤15µVp-p
  • Safety standard: IEC class I, type CF
  • Lead selection: Automatic and Manual
  • Operation mode: Automatic and Manual
  • Display: LCD 160*96 visual size: 34*60
  • Recording system: Thermal-array printing
  • Power supply: AC220V±10%
  • DC 7.4 lithium battery
  • Size:190*90*40
  • Weight: About 800g

DP2025 - Digital 3 Channel ECG

Specifications/Details :

  • 3.5'' TFT screen
  • 12 leads simultaneous display
  • Thermal printing system
  • Power supply both AC and DC
  • High capacity built-in lithium rechargeable battery
  • Battery power supports continually record 150 pieces of ECG
  • Built-in Database
  • Store more than 1000 pieces of archive
  • Digital signal processor for filter
  • Auto-measurement,auto-analysis and auto interpretation functions
  • Lead: Standard 12 leads
  • Patient leak current: <10uA
  • Input impedance: >=50M
  • Frequency response: 0.05Hz-150Hz(-3dB)
  • Time constant: Time constant>3.2s
  • CMRR: 100dB
  • Dimension of recording paper: 80mm(w)x20m(L)paper
  • Paper speed: 25mm/s,50mm/s
  • Sensitivity choice: 5,10,20mm/mV.Standard sensitivity is 10mm/mV+0.2mm/mV
  • Measurement parameters : HR,P-R interval , PDuration, QRS Duration,Q-T interval,Q-Tc,P Axis,QRS Axis,T Axis,R(V5), S› (V1),R(V5)+S(V1)
  • Product safety type: Class 1.Type CF, there is defibrillation and pacing protection circuit.
  • Enduring polarization voltage: +300mV
  • Noise level: ≤15µVp-p
  • Size: 315mm(L)×215mm(W)×77mm(H)
  • Net Weight: 2.25Kg

DP2020 Digital Single Channel ECG

Specifications/Details :

  • Large LCD display waveform and data
  • High-resolution thermal printing array system
  • Frequency response is as high as 150Hz
  • Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status
  • High resolution digital filter inhibits baseline drift without affecting ECG waveform
  • Concept of floating input circuit meets IEC safety standard
  • Rechargeable battery supporting more than 50 patient examinations
Specification:
Input Circuit Floating; Protection against Defibrillator effect
Lead Standard 12 Leads, Lead change automatically
Patient Current Leakage: ≤10μA
Calibrating Voltage: 1mV±3%
Frequency Response: 0.05Hz~150Hz (IEC) CMRR>100dB
Paper Speed: 25, 50mm/s±3%
Recording Paper: 50mm,20m, high-speed roll
Input Circuit Current: ≤50mA
Sensitivity: 1/2, 1, 2 (cm/mV)
Skin Voltage Tolerance: ±300mV
Dimensions: 310mm×230mm×70mm
Input Impedance: ≥50ΜΩ
A/D Conversion: 12 bit
Time Constant: >3.2seconds
EMG Filter: 35Hz (-3dB) / 25Hz (-3dB
Safety Standard: IEC class I, type CF
Noise Level : <15μVp-p
Weight 2.75kg

Standard Accessories:

  • Patient Cable,Thermal Printing Paper, Limb Electrodes, Chest Electrodes, Power Supply Cable, Grounding Wire

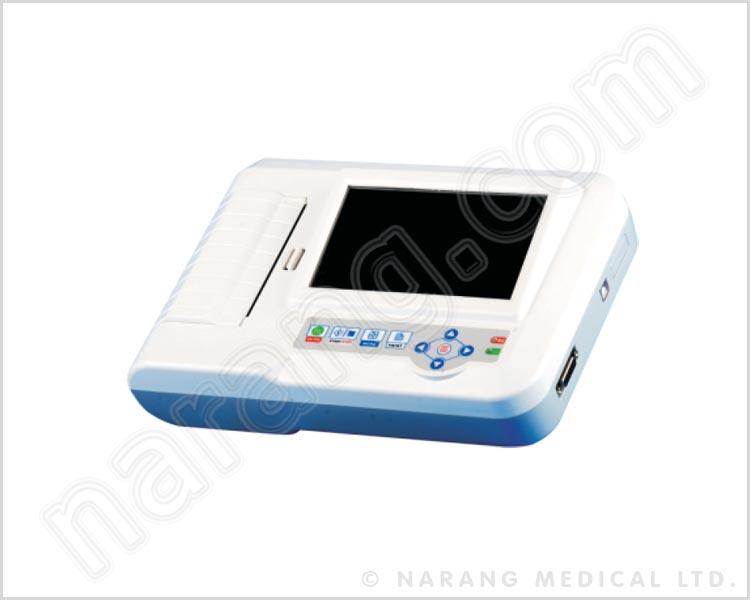

DP2030 - Digital 3/6 Channel ECG

Specifications/Details :

  • 7" TFT, touch screen, led backlight
  • Digital isolation technology and signal processing solution, digital filter
  • Patient management, name and age and id.
  • Detail analysis report.
  • Multi-language options: German, French, Italian, Turkish
  • Built-in lithium rechargeable battery, wide thermal printing system
  • USB and LAN socket.
  • Memory : Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive
  • Auto-measurement, auto-analysis, and auto interpretation.

Technical Features :

  • Lead: Standard 12 leads
  • Patient leak current : <10 micro A
  • Input impedance : ≥50 MΩ
  • Frequency response : 0.05 ~ 150HZ(-3dB)
  • Time constant : >3.2S
  • CMRR : >100dB
  • Dimension of recording paper : 80mmx20m
  • Paper speed : 25mm/s, 50mm/s
  • Sensitivity choice : 5, 10,20mm/mV.
  • Measurement parameters : HR, P-R interval, P-Duration, QRS Duration, Q-T interval, Q-Tc,P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
  • Product safety type : Class I, CF. Defibrillation and pacing protection
  • Enduring polarization voltage : ±300mv
  • Noise level : <15uVp-p
  • Dimension : 130mm(L)×74mm(W)×25mm(H)
  • Net weight : 2.3KG
  • Memory : Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive
  • CMRR : >100dB

DP2036 - Digital 12 Channel ECG

Technical Features:

  • Dsiplay : 8" TFT, touch screen, led backlight
  • Lead : Standard 12 leads
  • Patient leak current : <10 micro A
  • Input Impedance : >50ΜΩ
  • Frequency response : 0.05Hz ~ 150Hz (-3dB)
  • Dimension of recording paper : 210mm (W) x 20m (L) high-speed thermal paper
  • Paper speed : Auto record : 25mm/s, 50mm/s, error : ±5%
  • Measurement parameters : HR, P-R. interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(VS), S(VI), R(VS) + S(VI)
  • Dimension : 334mm (L) x 320mm (W) x 85m (H)
  • Net weight : 6.2 Kg
  • Memory : 1 ECG cable, 1 ground wire, 1 set limb electrode clamp 1 paper roll, 1 set chest electrodes, Power connection USB connection, Software (same languages as internal software) Manual: GB, FR, IT
  • CMRR : > 60dB, > 100dB (Adding Filter)
  • Time constant : Time constant > 3.2s
  • Input Way : Floating and defibrillation protection
  • CMRR : > 60dB, > 100dB (Adding Filter)
  • EMG interference filter : 35 Hz (-3dB)
  • Recording way : Thermal printing system
  • Rhythm record : 25mm/s, 50mm/s, error : ±5%
  • Manual record : 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 50mm/s, error : ±5%
  • Sensitivity selections : 5, 10, 20, 40mm/mV, error : ± 5%. Standard sensitivity is 10mm/mV ± 2mm/mV.
  • Auto record : Record setup according to auto record format and mode, automatically changing leads, measuring and analyzing.
  • Rhythm record : Record setup according to rhythm record format and mode, automatically measuring and analyzing.
  • Manual record : Record setup according to manual record format, manually changing leads.
  • Product safety type : Class I CF applied part; there is defibrillation and packing protection circuit in it.
  • Enduring polarization voltage : ± 500mV
  • Noise level : <15μVp-p
  • Power supply / Frequency : AC : 100 – 240V, 50/60Hz DC:14.8V, 3700mAh rechargeable lithium battery
