Digital Radiography X-RAY Machine

It is suitable for radiology department, orthopedics, ward, emergency room, operating room, ICU and other departments. With flexible movement, easy operation, high efficiency, to meet the radiography for all of human body's parts, such as head, limbs, chest, spine, lumbar vertebrae, abdomen, etc.

Features :

• Large size touch user interface Easy exposure control
• Intelligent system control makes your operation easier
• Smooth positioning at complex angle for radiography
• Rich options for clinical application
• Selected components contributes to excellect image quality
• High efficient image system delivers effortless interaction

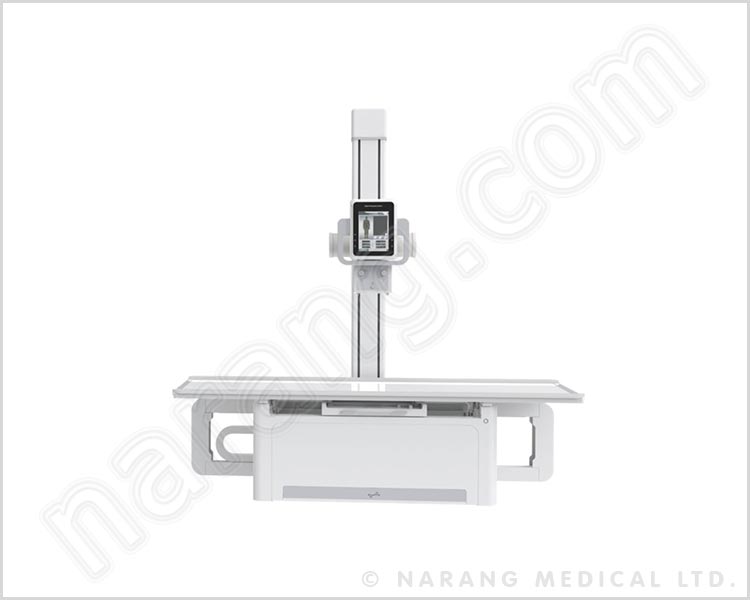

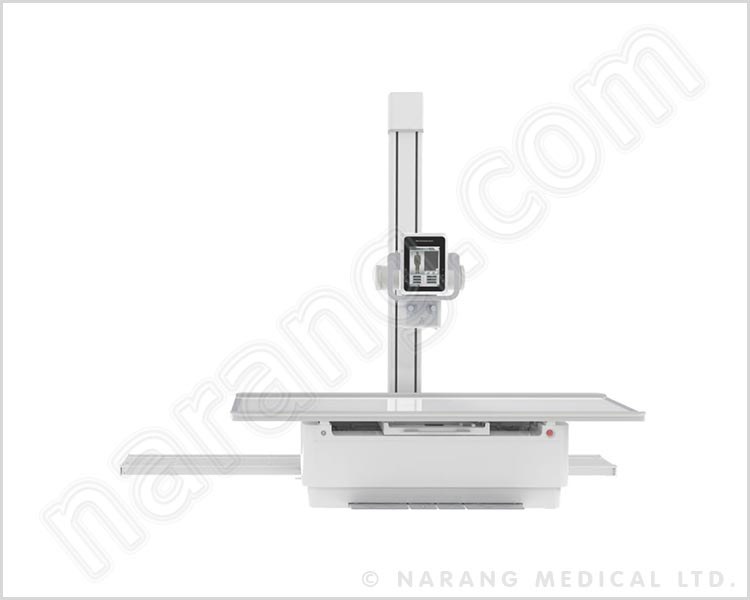

Item	Content	XY1042 - Floor Mounted	XY1044 - Floor Mounted Elevating Table, 17x17" FPD
Power	Voltage	380V ± 38V	380V ± 38V
	Frequency	50Hz ± 10Hz	50Hz ± 10Hz
X-ray High Voltage Generator	Power	50KW	65.5KW
	Inverter Frequency	500KHz	500KHz
	Tube voltage	40kV - 150kV, Step 1 k	40kV - 150kV, 1 kv step
	Tube current	10mA - 630mA	10mA - 800mA
	mAs	0.1-630mAs	0.1-800mAs
Collemator	Illumination brightness	>=200Lux	>=200Lux
	Filiter	>=1mmAL	>=1mmAL
X ray tube	Model:	XQG 50.	E7252X CANON BRAND
	Tube Focus: big/small	1.2mm /0.6mm	1.2mm /0.6mm
	Input power	Big focus 74kW Small focus 30kW	Big focus 75kW Small focus 27kW
	Target surface	12°	12°
	Anode thermal capacity	300KHU (rotating anode)	300KHU (rotating anode)
	Anode Heat dissipation:	750W	870W
	Tube Capacity:	1300KHU	1250KHU
	Rotary anode speed:	8400rpm	9700rpm
	Work voltage:	40-150KV	40-150KV
Wireless Flat Penal Detector 1	Materials	A-Si (Amorphous Silicon)- CSI	A-Si(Amorphous Silicon)- CSI
	Active area	430(H) × 430(V)mm	430(H) × 430(V)mm
	Pixel matrix	3072(H) × 3072(V)	3072(H) × 3072(V)
	Pixel pitch	139μm	139μm
	A/D	16bit	16bit
Flat Penal Detector 2 (optional)

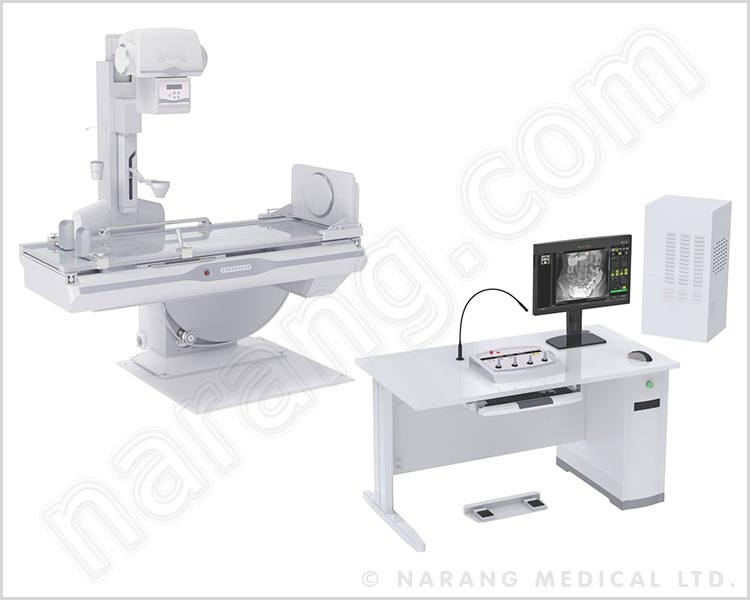

XR1050 : Digital Radiography & Fluoroscopy Machine - Dynamic Detector

Usage :

Full support perspective, gastrointestinal spot film, gi (bariummeal, barium enema), orthopedic photography, pediatrics photography, chest, urinary system angiography, peripheral angiography operations, gynecological photography (hsg) and many other checks, the real machine can realize all these function.

Features :

• High Performance and Intelligent SID electrically stetched to 1.8m Precise digital spot imaging Automatic stiching function-accurate and precise(optional)
• Cloud Image Interconnection DAP-dose visualized, safety assured(optional) Pulsed fluoroscopy, low dose and sharp imqges(optional)
• Stable and Reliable Image Chain Self-developped utrahigh frequency and high voltage generator Imported high quality X-ray tube Dynamic flat panel detector Removed dual grid

XR1040 : High Frequency X-ray Radiography System - Fixed

Use : The equipment is used for basic radiography requirements. It has tube current of 200mA with high frequency level.

Standard Features:

• Preprogrammed parameters for photography of Adult and child for Multi positions.
• Easy to operate as already pre programmed.
• Fault-code alarm function.
• LCD touch screen for parameter setting along with the remote control.
• High Frequency and Voltage ensures Sharp image and Low skin dose.
• With Bucky Stand

XR1047 : High Frequency X-Ray Radiography - Fixed Digital

Usage : High frequency flat-panel digital X-ray radiography system, suitable for radiology department, orthopedics, ward, emergency room, operating room, ICU and other departments. With flexible movement, easy operation, high efficiency, to meet the radiography for all of human body's parts, such as head, limbs, chest, spine, lumbar vertebrae, abdomen, etc.

Features:

• U-arm Movement / Rotation of U-arm / Detector rotating / Tube rotating
• 500 us (0.0005s) shortest exposure time in the world.
• Integrated image chain design to reduce dose.
• Detector 100 rotation
• Tube 180 large angle rotation.
• Optional: Mobile Bed / Image stitching / AEC.

XR1010 : High Frequency Mobile X-Ray Machine With Battery Backup

Use : NET mobile high-frequency X-ray photography diagnostic equipment can be used in radiology, orthopedics, wards, emergency rooms, operating rooms, and ICU for radiography on human body, such as head, limbs, chest and spine. It has build in battery back up and can work during power supply. It is suitable for radiography requirement in emergency conditions and outdoors.

Features:

• With High voltage generator
• LCD display, parameter memory, Techniques of kV analog closed loop control, mAs digital closed loop control and Microprocessor based control to ensure precision and repeatability of the dose
• With 50 preset exposure programs. Process parameters can be changed and modified.
• Emergency stop button, Screen display of Error number in case of problem
• Automatic recovery system of parameters on power cut off.
• With high voltage protection, tube over-current protection, output overload protection function
• Pillar can rotate 90 deg clockwise and anticlockwise
• With battery back up. Can take upto 2000 images in case of power failure.

XR1015 : High Frequency Mobile Digital C-Arm System – (5KW 100MA)

Usage: This is High Frequency Mobile Digital C-Arm system used in orthopedic surgery such as Nail fixation, Osteopathy, Dialysis, removing foreign body, implanting pace maker etc.

Features:

• Mega pixel CCD Camera and High resolution image chain system for excellent image quality
• Pulse fluoroscopy function can realize optimized low-dose and real-time imaging.
• Distinctive design and user-friendly operation thanks to the counterbalanced design of the C-arm.
• Unique image software processing system and standard DICOM interface can integrate into clinical network.

XR1020 : High Frequency Mobile Digital C-Arm System

Use : It is widely used in orthopedics, urology surgery, spinal surgery, abdominal, pain management, digestive system, gynecology and obstetrics etc.

Standard Features:

• High power generator with digital CCD camera to provide high resolution image
• Pulse fluoroscopy with controlled exposure and ultra-low radiation dose.
• Double high resolution LCD monitors ensure image quality .
• Work station has high-capacity digital storage function. Fluoroscopy and digital spot film can be stored in digitized form. It also has functions such as edge enhancement, multiple mirror image, gamma correction, cine loop, window width & window level, expert template and CD writer. It has dicom 3.0 interface to connect the internet
• Electric motor control for accurate positioning and all round rotation .

Technical Parameters :
Code	XR1020	XR1025	XR1030
Output Power	6kw	12kw	16kw
Dual Focus: Small/Large	0.3/0.6	0.3/0.6	0.3/0.6
Inverter Frequency	60kHz	60kHz	60kHz

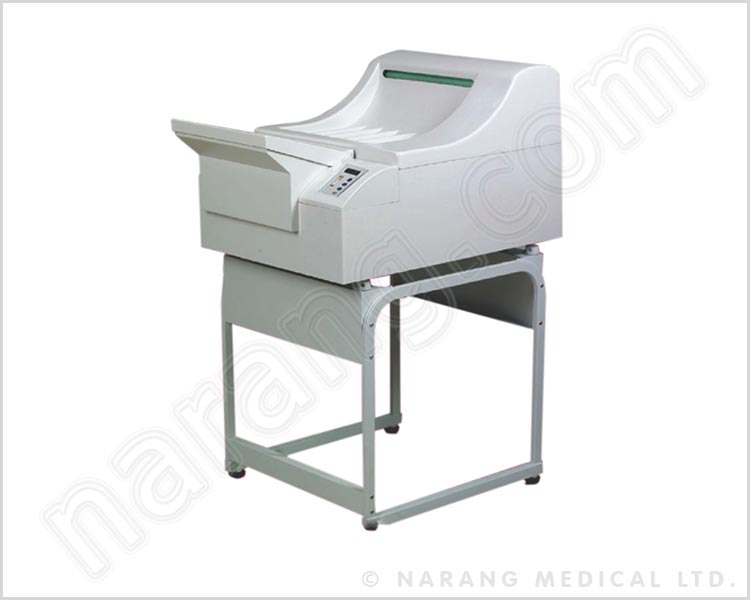

XY1100 : Film Processor

Features:

• Small footprint of 0.36m2; can be installed in any darkroom.
• Volume of the developer and the fixer is only 5.5 L
• Less chemical and water consuming, It fits for the medical organizations that process more than 10 sheets of films every day.
• On high-speed mode, it only need 90 seconds for a complete cycle. Can meet any emergencies.
• Microprocessor controlled temperature and speed.
• Alert functions for chemical replenish, be ready and low chemical level
• Keyboard LEDs indicating all the work conditions.
• Automatic processing of Film sheet once fed.
• Two output modes output forwards (In a darkroom) and output backwards (on the processor)
• Easy maintenance and service
• High efficient and quick drying

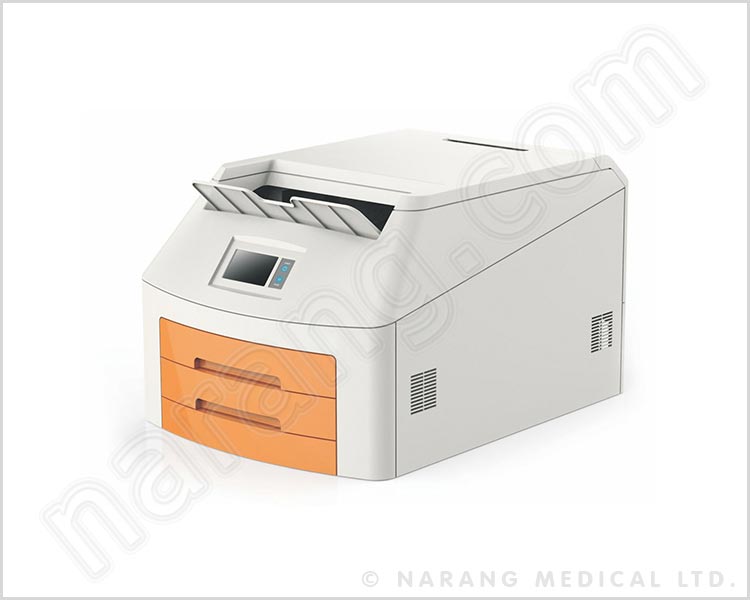

XY1105 : Dry Imager - Thermo - Graphic Film Processor

The Dry Imager is a thermo-graphic film processor designed to copy and send images through DICOM network protocol. It uses the latest direct dry thermal imaging technology which accommodates for a full range of modalities including CT, MRI, DR, CR, Digital Gastrointestinal, Nuclear Medicine, Mobile X-Ray Imaging, and Dentistry, etc. The Dry Imager dedicates to precision in diagnosis with its outstanding image quality, and offers affordable imaging.

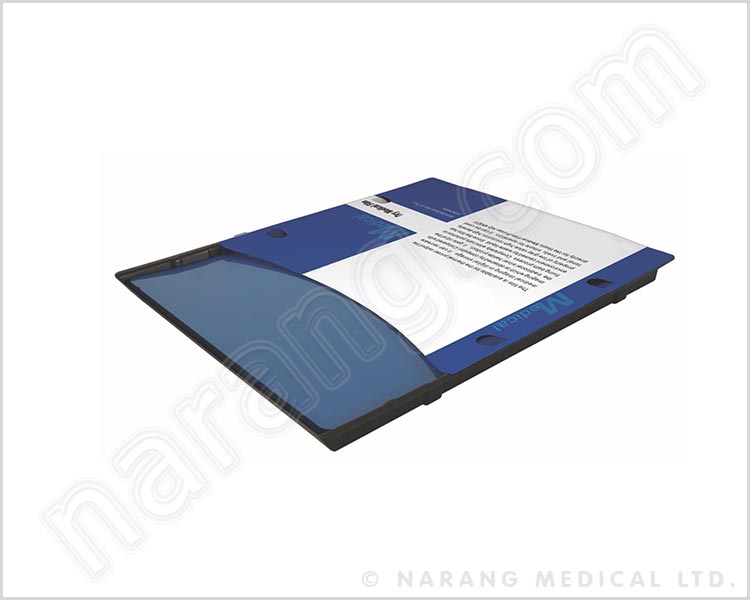

XY1110 : Medical DRY Film

Product Features : This film is suitable for the printing of medical image that is stored digitally. It accurately reproduces various medical images acquired by computers. Compared with the traditional method, this film avoids the use of silver halide product and eliminates pollution caused by chemical waste. It possesses features such as low gray value, good contrast, high resolution, high density, and user-friendliness

Insensitive to light : Can be used directly under daylight.

Application : This product is a printing consumable, and is designed to be used with our XY1105/6/7 Dry Imager. We advise pretesting when attempting to load this film in imagers of other brands in order to achieve desirable results.

Operating Environment :
Temperature: 18 to 24°C
Humidity: 50 to 65% RH

Storage :

• Please store the films in cool, dry, dust-free environment, and keep away from direct sunlight, acid and alkaline gas. Please also take note of the following:
• Keep away from heat source, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, etc.
• Temperature: 10 to 23°C
• Relative humidity: 30 to 65% RH
• Store in upright position to avoid adverse effect from external pressure
• Packaging Reference

Packaging Reference :
