DP2003 : Multi-Parameter Patient Monitor

Features:

• 12.1” high resolution, LED multi display with LCD backlight
• Modern, Space saving 120mm slim design
• ECG, NIBP, SpO₂, TEMP, PR/HR, RESP
• Optional functions EtCO₂, 2IBP, recorder etc
• 168 hrs of graphic and tabular trends for all parameters
• Adjustable Respiration Lead
• Li-ion Battery rechargeable with 4 hours of continuous working
• Resolution 800x600, 7 waveforms simultaneously
• Dimensions : 304(w) x 279(H) x 137 (D)mm
• Weight : 6.5 kg
• Patient Range : Neonate, Pediatric, Adult.

DP2003-T : Multi Parameter Patient Monitor With Touch Screen

Features:

• 12.1” high resolution, LCD display
• Long life touch screen, Accutouch technology having contamination resistant touch.
• Dimensions : 304(w) x 279(H) x 137 (D)mm
• Weight : 4.3 kg

DP2006 : NICU Monitor - For Neonate And Pediatric

Application:

• Used only for Neonate and pediatric patients

Features:

• 8.4” TFT Touch screen, Light weight, compact design
• Low current detection up 0.1mV of ECG, ensures accurate monitoring on neonates .
• Adjustable respiration lead ensures accurate Neonatal patient monitoring.

Standard Configuration:

• ECG, SpO₂, NIBP, TEMP, PR/HR, RESP
• Li-ion Battery rechargeable with 4 hours of continuous working
• Dimensions : 301(W) x 279(H) x 137(D)mm
• Weight : 6 kg

Optional Functions:

• EtCO₂, Oxygen Concentration Module, Wakeup Module.

DP2000 : Multi-Parameter Monitor

Specifications/Details :

• High resolution 12.1" color TFT display
• Lightweight, compact and portable
• ECG, SPO₂ , NIBP, RESP, 2-TEMP, PR
• Optional : 2-IBP, ETCO , And thermal printer
• Built-in rechargeable lithium battery
• ECG waveforms of 7-leads display on the same screen
• 72-hours graphic and tabular trends of all parameters
• 72 alarm events of all parameters recall
• 32 seconds full-disclosure waveform review
• 500 NIBP measurement data storage and recall
• Data and waveforms color be adjustable
• Arrhythmia analysis and S-T segment analysis
• Suitable for adult paediatric and neonatal patient

• ECG, Respiration, Temperature, SPO₂, NIBP, Pulse rate
• Optional: EtCO₂, IBP

DP2000+ : Patient Monitor

Same as DP2000 with upgraded appearance

• ECG : Heart rate (HR), ECG Waveform, Arrhythmia and ST-Segment analysis
• RESP : Respiration Rate (RR), RESP : Respiration Waveform
• SpO2 : Oxygen Saturation (SpO2), Plethysmogram (PLETH) Waveform, Pulse rate (RR), Bar Graph
• NIBP : Systolic pressure (SYS), Diastolic Pressure (DIA), Mean Pressure (MEAN)
• TEMP : T1, T2, TD

Additional Features :

• IBP (Optional) : CH1: SYS, DIA, MAP CH2: SYS, DIA, MAP IBP Waveform
• CO2 (Optional) : EtCO2, InsCO2: Inspired Minimum CO2, AwRr: Air Way Respiration SUNTEC NIBP, MASIMO SPO2, AG, 12 lead ECG

DP2002 : Vital Signs Monitor

Technical Features :

• Display Screen: 2.8" color TFT LCD, 320×240 pixels Red and Yellow highlight LED
• Standard Configuration: Systolic Pressure(SYS), Diastolic Pressure(DIA), Mean Pressure(MAP), SpO₂ and Pulse rate(PR)
• NIBP Monitoring: Yes
• Packing Dimension: 42×24×32 cm
• Patient range: Pediatric, Adult
• Weight: 1.6 Kg

DP2001 : Multi Parameter Patient Monitor, Acute & Sub-Acute Care

Basic Features :

• 15 TFT colour LCD screen.
• Portable monitor integrates parameter measurement module, display and recorder in one device.
• Applicable for monitoring Adult, pediatric and neonate
• Built in replaceable battery

Technical Features :

• Display : 15" TFT color LCD
• Standard Configuration : ECG, RESP, SpO₂, PR, NIBP and dual-channel TEMP
• Power Source : AC/DC, built-in rechargeable lithium battery.
• NIBP Monitoring : Yes
• Central monitoring system : 3G, WiFi or wired mode
• Dimension : 363mm(L)×168mm(W)×339mm(H)
• Weight : 4.9 Kg

DP2001-T : Multi Parameter Patient Monitor, Acute & Sub-Acute Care

Basic Features :

• 15 TFT colour LCD screen.
• Portable monitor integrates parameter measurement module, display and recorder in one device.
• Applicable for monitoring Adult, pediatric and neonate
• Built in replaceable battery

Technical Features :

• Display : 15" TFT color LCD, Touchscreen
• Standard Configuration : ECG, RESP, SpO₂, PR, NIBP and dual-channel TEMP
• Optional : IBP,CO2,Built in printer,12 lead ECG.
• Power Source : AC/DC, built-in rechargeable lithium battery.
• NIBP Monitoring : Yes
• Pacemaker Monitoring : Yes
• Central monitoring system : 3G, WiFi or wired mode
• Weight : 5.2 Kg

DP2007 : Patient Monitor 10”

Features :

• 10” color medical TFT display
• ECG full lead
• Unique human voice alarm
• Maximum 720 hours graphic and tabular trends
• Maximum 12 hours of all waveforms
• Nurse Call, Analog output
• Standard
• ECG ,SPO2 ,RESP ,TEMP, NIBP
• Optional:
• Recorder, dual IBP, CO2, IOC, IRMA multi gas module

DP2005-W : Portable Patient Monitor 7”

Features :

• 7” Color medical TFT display,
• ECG full lead
• Unique human voice alarm
• Maximum 720 hours graphic and tabular trends
• Maximum 12 hours of all waveforms
• Nurse Call, Analog output

Standard :

• ECG, SPO2 ,RESP ,TEMP,NIBP
• Optional: recorder, dual IBP, CO2, GAS, IoC

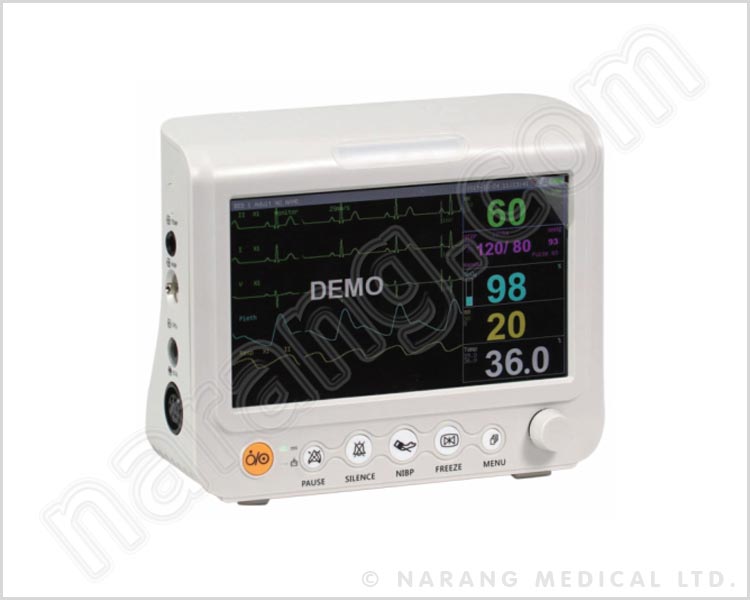

DP2005 : Vital Signs Monitor

Specifications/Details :

• 8" TFT, led backlight , 800x480 pixels.
• Visual and Audio alarms, adjustable.
• Patient managment, name and age and id.
• Network with Central Station Software
• Audio volume adjustable from 1 ~ 8 level.
• Multi-language options: German, French, Italian, Turkish
• Built-in removable and rechargeable lithium battery
• UI with both Keypad and Touch Screen operation.
• Memory: Built-in memory or miniSD Memory card. Store and archive more than 1000 readings.
• Powerful data storage and managment, Trend graph, Trend table, etc.
• Arrythmia analysis and S-T segment analysis.

ECG

• Lead mode: 3-lead or 5-lead
• HR range: 15 ~ 300 bpm
• Accuracy: ±2bpm or ±2%, which is greater

NIBP

• Method: Oscillometry
• Mode: Manual/Auto/Continuous
• Measurement Range: 25 ~ 260mmHg

SPO2

• Measurement Range: 0 ~ 100%
• Accuracy: ±2%(70%~100%) 0% ~ 69% unspecified

Pulse Rate

• Measurement Range: 25 ~ 250 bpm
• Accuracy:±3 bpm
• Dimension: 210 x 130 x 210mm
• Net weight: 2.3KG

DP2004 : Handheld Patient Monitor

Features :

• Easy operation by 4" color TFT Up to 100 Users ID switch
• Resolution: 320*480
• 3/5 Leads ECG, NIBP, Spo2,Temp,Co2
• Lithium ion battery power supply
• Indicator: Alarm indicator, Power indicator
• Low Perfusion Index 0.05%-20%
• Can continuously record 48 hours of measurement data
• In spot mode,100 users ID, each user can store 200sets data
• Alarm: Probe off, low power
• Support audio and visual alarm, support to set alarm upper and lower limit values
• Application: Neonatal, pediatric and adult patients
• Trace: 1 plethysmogram waveform, ECG wave

DP2009 : Handheld Vital Sign Monitor

Features :

• 3.5” TFT color display
• NIBP, SPO2, TEMP,CO2
• Audible & visual alarm with a function of Hi-Low.
• Built in battery3.7V/2000mAh
• Perfusion Index: (0.025%-20%)
• Two measurement mode: Spot & Monitoring
• In monitoring mode can continuously record 48 hours of Data
• In spot mode: 100 users id, each user can store 200Sets data
• SizeVolume 146*67*30mm
• Weight250g
• Safety typeinternal power supply BF type
• ChargerInput AC :100-240VAC
• Output DC: 2A mirco USB interface

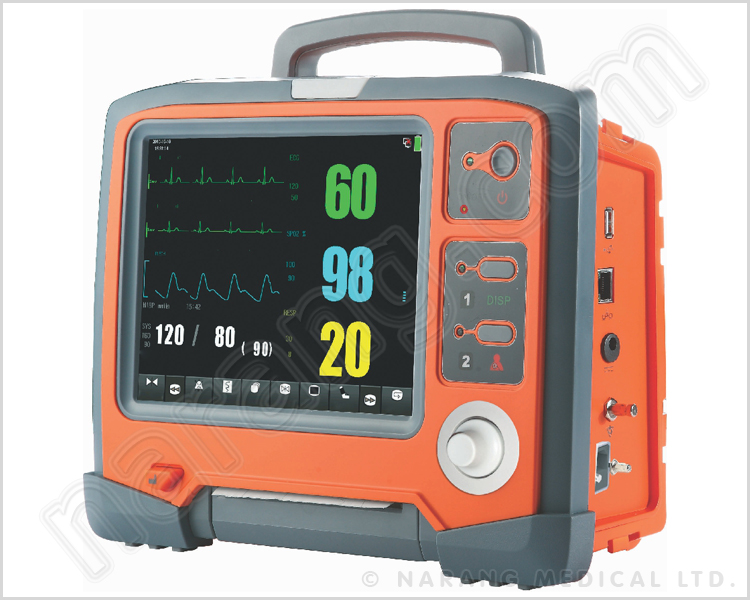

DP2008 : EMS Monitor - For Emergency / Ambulance

Features:

• 8.4” TFT Touch screen, Light weight, compact design With Fixed accessory bag with packed sensors for immediate use
• Li-ion Battery rechargeable with 8 hours of continuous working, Ambulance / Vehicle power supply also available
• IPx4 waterproof and shock resistant design ensures smooth working in unstable conditions.
• Dimensions : 301(W) x 266(H) x 145.5(D) mm
• Weight : 6 kg

Standard Configuration:

• ECG, SpO₂, NIBP, TEMP, PR/HR, RESP

DP2010 : Vital Signs Monitor

Specifications/Details :

• 7" TFT, touch screen, led backlight , 800x480 pixels.
• Visual and Audio alarms, adjustable.
• Patient management, name and age and id.
• Network with Central Station Software
• Audio volume adjustable 1 ~ 8 level.
• Multi-language options: German, French, Italian, Turkish
• Built-in removable and rechargeable lithium battery
• UI with both Keypad and Touch Screen operation.
• Memory: Built-in memory or miniSD Memory card. Store more than 1000 pieces of archive
• Powerful data storage and management, Trend graph, Trend table, etc.
• Arrhythmia analysis and S-T segment analysis.

ECG:

• Lead mode:3-lead or 5-lead
• HR range:15 ~ 300 bpm
• Accuracy:±2bpm or ±2%, which is greater

NIBP:

• Method: Oscillometry
• Mode: Manual / Auto / Continuous
• Measurement Range:25 ~ 260mmHg

SPO2:

• Measurement Range: 0 ~ 100%
• Accuracy: ±2%(70%~100%)
• 0% ~ 69% unspecified

Pulse Rate:

• Measurement Range: 25 ~ 250 bpm
• Accuracy: ±3 bpm
• 0% ~ 69% unspecified
• Net weight: 2.1KG
