Spirometer, Spirometer Manufacturers, Spirometer Suppliers, Spirometer Manufacturer India

Spirometer Portable with Ultrasonic sensor is connected with PC to achieve accurate measuring, in various scenarios, including physical health examination, emergency, clinics and community hospitals and primary hospitals.

Ask Price

AN750 : Spirometer Portable Ultrasonic

Technical Features :

Spirometer Portable - Ultra Sonic
Function: Complete Spirometry (FVC, SVC, Flow-Volume Loop MVV), Bronchial Dilation Test (pre/post dilator)
No.	Item	Parameter	Accuracy
1	Flow range	0 to 18L/s	±2% or 50ml/s
2	Volume range	No limit	±2% or 50ml
3	Resolution	F size mouthpieces	1ml/s
4	Sample rate	200Hz	--
5	Resistance	<0.002kPa/L/s	--
6	Minimum dead space	F size mouthpieces	18mL
7	Power	<5W	--
8	Power supply voltage	DC 5V	--
9	Volume calculation Principle	Flow integral	--
10	Volume resolution	1mL	--

Ask Price

AN755 : Spirometer - Expert

Pediatric "specialist “+Adult , available for patients of all ages,
Accurate measurement of patient whose weight is above 2 Kg.
Modular design to achieve different PFT function
High sensitivity and low resistance ultrasonic flow transducer, accurate & reliable, excellent curve repeatability
RECO design for the disposables, perfectly eliminate cross-infection
Zero calibration
Real-time BTPS correction
Meet ATS/ERS standards

Technical Features :

Spirometer - Expert
Function: Complete Spirometry (Slow VC, FVC, Flow-Volume Loop, Tidal FVL, MVV), Bronchial dilation test (pre/post dilator), Bronchial provocation test procedure( without hardware)
No.	Item	Parameter	Accuracy
1	Flow range	0 to ±2.00 L/s 0 to ±5.00 L/s 0 to ±18.00L/s	±2% or 50ml/s ±2% or 50ml/s ±2% or 50ml/s
2	Volume range	No limit	±2% or 50ml
3	Resolution	F size mouthpieces M size mouthpieces S size mouthpieces	1ml/s 1ml/s 1ml/s
4	Sample rate	200Hz	--
5	Resistance	<0.002kPa/L/s	--
6	Minimum dead space	F size mouthpieces M size mouthpieces S size mouthpieces	18mL 7mL 2mL
7	Power	300VA	--
8	Power supply voltage	a.c. 220V	--
9	Volume calculation Principle	Flow integral	--
10	Volume resolution	1mL	--

Ask Price

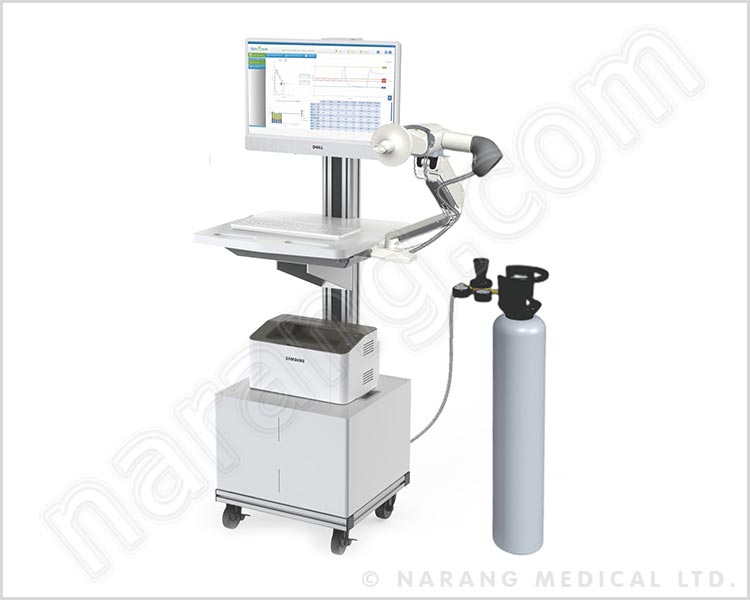

AN759 : Spirometer DLCO

Complete Spirometry (Slow VC, Flow-Volume Loop, Tidal FVL, MVV)
Bronchial Dilation test (pre/post dilator)
Bronchial provocation test procedure (without hardware)
DLCO

Technical Features :

AN759 SPIROMETER DLCO from No. 1-12

AN759-P SPIROMETER DLCO PRO from No. 1-14

No.	Model	Parameters	Accuracy
1	Flow range	0~18L/s	±3% or ±0.08 L/s, whichever is greater
2	Volume range	0~30 L	± 3%
3	Resolution	S, M, F I, F II	1ml/s
4	Sample frequency	200Hz	/
5	Air resistance	< 0.35kPa/(L/s)	/
6	Min dead space	S M F I	2ml 7ml 18ml
7	Power	300VA	/
8	Supply voltage	a.c.220V	/
9	Volume calculation	Flow integrating	/
10	Volume resolution	1mL	/
11	CO sensor	0~0.3%	±1% or ±50ppm, whichever is greater
12	Methane sensor	0~0.3%	±1% or ±50ppm, whichever is greater
13	Medication triggers inspiratory flow	Flow range::0~3L/s	±10%
14	Equivalent volume particle size distribution	Atomization Granule diameter 1μm~5μm	> 60%

Ask Price

AN759-P : Spirometer DLCO PRO

Rapid digital NDIR gas analyzer
Unique blocking valve design, high quality on-demand valve
ATS/ERS recommended co/he standard test gas mixture
Dosing device for provocation testing

Technical Features :

AN759 SPIROMETER DLCO from No. 1-12

AN759-P SPIROMETER DLCO PRO from No. 1-14

No.	Model	Parameters	Accuracy
1	Flow range	0~18L/s	±3% or ±0.08 L/s, whichever is greater
2	Volume range	0~30 L	± 3%
3	Resolution	S, M, F I, F II	1ml/s
4	Sample frequency	200Hz	/
5	Air resistance	< 0.35kPa/(L/s)	/
6	Min dead space	S M F I	2ml 7ml 18ml
7	Power	300VA	/
8	Supply voltage	a.c.220V	/
9	Volume calculation	Flow integrating	/
10	Volume resolution	1mL	/
11	CO sensor	0~0.3%	±1% or ±50ppm, whichever is greater
12	Methane sensor	0~0.3%	±1% or ±50ppm, whichever is greater
13	Medication triggers inspiratory flow	Flow range::0~3L/s	±10%
14	Equivalent volume particle size distribution	Atomization Granule diameter 1μm~5μm	> 60%

Ask Price

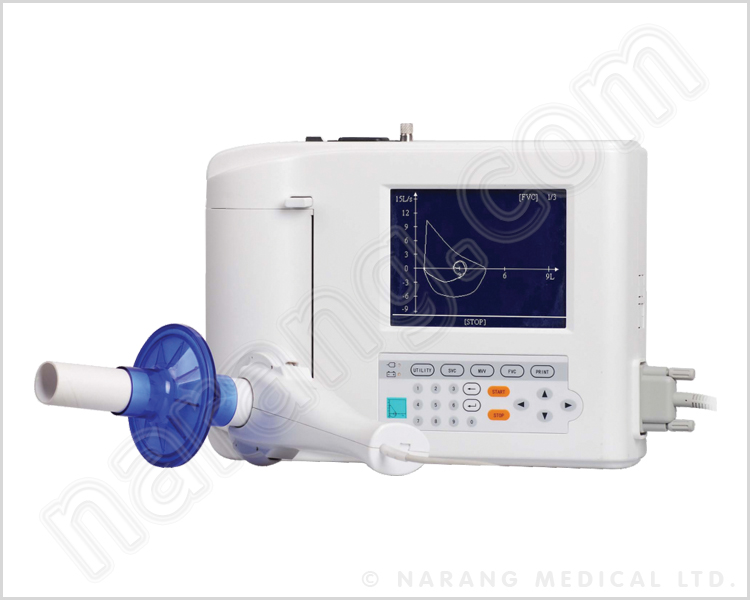

DP2082 : Spirometer

Application:

Spirometer is used to assess how well your lungs work by measuring how much air you inhale / exhale and how quickly you exhale. It is used to diagnose asthma, chronic obstructive pulmonary disease (COPD) and other conditions that affect breathing.

Basic Features:

Soft-touch keys, easy to maintain
Built-in precise 110mm thermal printer
Small size, light weight and easy to carry
High-precision differential pressure flow sensor

Technical Features :

Display Screen	Diagonal line 5.7inches
	Monochrome LCD
	Resolution 320*240
Measuring range	Capacity range: 0L ~ 9L Flow velocity range: 0 ~ 14L / s
Accuracy	Capacity: 0L ~ 1.6L (±50ml) 6L ~ 9L (±3%)
	Flow rate: 5% or 0.2L / s
	Respiratory rate: 4 / 20 ~ / min (±1 / min) 20 / 60 / min (error: ± 5%)
Measuring time limit and degree	Vital capacity: every 50s, measuring 3
	FVC: per second, 25s, measuring 3
	The maximum ventilation volume: every 12 seconds, measuring 3
Packing size	2 Kg, 28420984mm
Optional	Software to connect to PC

Ask Price

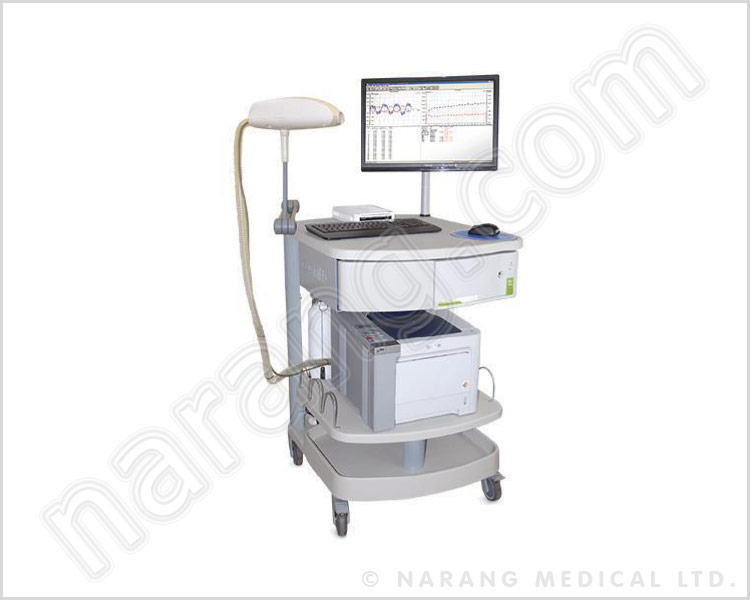

SPR-500 : PFT Machine

Complete, Modular Pulmonary Function System

The base unit includes spirometry, closed circuit helium dilution, functional residual capacity (FRC) and lung sub-divisions along with a CO2 scrubber and circulating fans. The 12-litre spirometer with a true volume displacement horizontal dry rolling seal is completely user accessible for easy maintenance and cleaning.

Compact system with cart or table-top configurations
Ability to upgrade options over time
High precision, reliable, accurate, and stable gold-standard Lilly heated pneumotachograph with no moving parts
Low cost of operation and low maintenance
The software suite with complete operator and patient guide included
All measurement programs in the volumetric P.F.T. system is controlled by the powerful software. Featured in the standard configuration are the following testing options.

Basic Spirometry: (with option for every test to use either the closed circuit or the open circuit) Includes Forced Vital Capacity, Slow Vital Capacity, Maximum Voluntary Ventilation and Minute Tidal Ventilation including broncho challenge testing software.

Lung Volumes Methods (FRC, VC, IC, ERV, RV, TLC)

Unique: He Dilution Wash-in with standard method and closed circuit by unique low resistance dry rolling seal spirometer He dilution technique with O2 compensation and CO2 absorption.

Choice of Three DLCO Options

Unique: Medisoft is the only manufacturer featuring a choice of three diffusion methods.

Single Breath with Helium trace gas (He)
DLCO-NO dual diffusion method (Trace gas He) (Exclusive) with membrane diffusion (DM) and Capillary blood volume (Vc)
Re-breathing Diffusion Dlco rb using inspiratory bag

Additional Options to Complete Your Pulmonary Diagnostic Testing

Bronchoprovocation and Special Resistance Testing:

PROVO4 Provocation System: automated, software controlled, accurate and safe bronchial provocation testing.
RINT: resistance measurement using interrupter technique. Ideal for children. The Air Pro suitable for children and adults over 5 years old (Angle is accurately measuring the patient whose weight
NEP (negative expiratory pressure): alternative method to detect expiratory flow limitation, which does not require performance of forced expiratory efforts on the part of the patient, or a body plethysmography test.
Respiratory Mechanics Testing:
MIP – MEP (maximum inspiratory and maximum expiratory pressure): indicator of respiratory muscle strength.
SNIP: maximal nasal inspiratory pressure using a nasal cannula. A non-invasive indicator of diaphragmatic muscle fatigue.
P01: inspiratory occlusion pressure at 0.1 seconds, for respiratory muscle drive evaluation.
Static and dynamic compliance and resistance: measured by intra-oesophageal balloon catheters.

Technical Specifications

Power Requirements	230 VAC 50 Hz
Power Consumption	+/- 110 VA (module)
Warm up Time	20 minutes
Meets All Electrical Safety Requirements	IEC60601-1 CE MDD 93/42/EC, Class IIa
Computer Interfacing	Windows 7 Pro / Ultimate / 8.0 / 8.1 ™ Serial interface RS232
AMBIENT CONDITIONS
Temperature	15 - 35°c
Relative Humidity	30 to 80 %

Ask Price

SP04 : Spirometer

Product Description

The spirometer is a high-quality medical device that measures your maximum possible exhalation which is called "peak flow" (referred to in medical terms as PEF-Peak Expiratory Flow) and "forced expiratory volume" (commonly known as FEV1) in first second. Regular monitoring of your peak flow is extremely useful for controlling disease of the airways such as asthma.C.O.P.D or chronic bronchitis.

Product Features

The accuracy meets American Thoracic Society (ATS) standard 2005 Revision.
Suitable for hospital or home
Maximum of records is 300 measurements
It can upload to Analyzers software through Bluetooth or USB

Product Parameters

Parameter	Specification
Measuring Parameters	PEF, FEV1
Measuring Method	Rotating wing wheel
Measuring Range	Volume: 0.01 L – 9.99 L
Measuring Range	Flow: 50 L/min – 900 L/min
Accuracy	Volume: ±3% or ±0.05 L, whichever is greater
Accuracy	Flow: ±10% or ±20 L/min, whichever is greater
