Cardiology Consumables

CD1001 : PTCA Balloon Dilatation Catheters

Standard Features:

  • Taped catheter tip and smooth transition of the diameter for entering tortuous vessels
  • Inherent balloon memory for multiple inflation and deflation during usage
  • Special “Super-Lube™ coating to enhance catheter crossibility
  • Co-wire shaft design to exhibit decent pushability and kink-resistance
  • Stable balloon burst pressure to maintain the safety profile
Technical Specifications:
Nominal Pressure 6 atm
Rated Burst Pressure 16 atm
Average Burst Pressure 20 atm
Average Compliance 8%
Catheter Length 143cm
Entry Profile 0.018"
Crossing Profile(3.0mm balloon) 0.030"
Proximal Diameter 2.0F
Distal Diameter 2.7F
Distal Length 36cm
Guidewire Lumen Length 24cm
Compatible Guidewire 0.014"
Compatible Guiding Catheter 5F
Balloon Folding 3

Order Informations:

Diameter
(mm)
Length (mm)
10mm 15mm 20mm 25mm 30mm 35mm 40mm
1.5mm CD1001 CD1008 CD1015 CD1022 ------ ------ ------
2.0mm CD1002 CD1009 CD1016 CD1023 CD1030 CD1037 ------
2.5mm CD1003 CD1010 CD1017 CD1024 CD1031 CD1038 CD1045
2.75mm CD1004 CD1011 CD1018 CD1025 CD1032 CD1039 CD1046
3.0mm CD1005 CD1012 CD1019 CD1026 CD1033 CD1040 CD1047
3.5mm CD1006 CD1013 CD1020 CD1027 CD1034 CD1041 CD1048
4.0mm CD1007 CD1014 CD1021 CD1028 CD1035 CD1042 CD1049

CD2001 : CTO Balloon Dilatation Catheters

Standard Features:

  • Extremely low balloon crossing profile
  • “Super-Lube™” coating for navigating into small vessels
  • Crossing profile of 0.0215” / 0.546mm
Technical Specifications:
Usable Catheter Length 142cm
Catheter Type RX
Balloon Profile 0.0215"
Tip Profile 0.016"
Tip Length 2.0mm
Marker Band 1
Proximal Shaft Diameter 2.0 F
Distal Shaft Diameter 2.5 F
Guide Wire 0.014"
Coating “Super-Lube™ Coating Technology
Balloon Pleating Double-fold
Nominal Pressure 6 atm
Balloon
Diameter
CTO Balloon Compliance Chart
2atm 4atm *6atm 8atm 10atm 12atm 14atm **16at 18atm 20atm
1.00mm 0.89 0.95 1.00 1.05 1.10 1.14 1.18 1.21 1.24 1.28
2.25mm 1.16 1.20 1.25 1.30 1.35 1.39 1.42 1.45 1.48 1.50
  * Nominal Pressure
  ** Rated Burst Pressure – Do Not Exceed

Order Informations:

Diameter (mm) Length (mm)
5mm 8mm 10mm 12mm 15mm
1.00mm CD2001 CD2004 CD2007 CD2010 CD2013
1.25mm CD2002 CD2005 CD2008 CD2011 CD2014
1.50mm CD2003 CD2006 ------- ------- -------

CD3001 : High Pressure / NC Balloon Catheters

Standard Features:

  • Extremely low balloon compliance designed for postdilatation after DES
  • Strengthened balloon material selected for high pressure challenge during PCI
  • Low profile dilatation catheter for optimal tracking and crossing
*Low Compliance & High Burst Pressure Ideal For Post-Dilatation After DES Implantation
Technical Specifications:
Catheter Type RX
Prox.Shaft Diameter 2.0 F
Dist.Shaft Diameter 2.7 F
Guide Wire 0.014"
Marker Band 2
Balloon Pleating 3-fold
Nominal Pressure 10 atm
Rated Burst Pressure 20 atm
Average Burst Pressure 26 atm
Profile (3.0mm standard) 0.030"
Lesion Entry Profile 0.016"
Working Length 143cm
NC Balloon Compliance Chart
Pressure Balloon Diameter
2.50mm 2.75mm 3.00mm 3.50mm 4.00mm
2 2.31 2.55 2.76 3.26 3.55
4 2.35 2.59 2.82 3.29 3.74
6 2.40 2.64 2.88 3.36 3.85
8 2.45 2.70 2.95 3.43 3.95
10(NP) 2.50 2.75 3.00 3.50 4.00
12 2.53 2.78 3.05 3.54 4.04
14 2.55 2.81 3.08 3.57 4.08
16 2.58 2.84 3.11 3.61 4.13
18 2.60 2.87 3.14 3.65 4.17
20(RBP) 2.64 2.90 3.17 3.69 4.20
22 2.67 2.93 3.20 3.73 4.24
24 2.70 2.97 3.24 3.78 4.27
26 2.73 3.01 3.28 3.83 4.30

Order Informations:

Diameter (mm) Length (mm)
10mm 12mm 15mm 20mm 25mm 30mm
2.50mm CD3001 CD3006 CD3011 CD3016 CD3021 CD3026
2.75mm CD3002 CD3007 CD3012 CD3017 CD3022 CD3027
3.00mm CD3003 CD3008 CD3013 CD3018 CD3023 CD3028
3.50mm CD3004 CD3009 CD3014 CD3019 CD3024 CD3029
4.00mm CD3005 CD3010 CD3015 CD3020 CD3025 CD3030

CD4001 : Stainless Steel Coronary Stent System

Standard Features:

  • Open cell design for side branch access
  • Decent flexibility and crossibility
  • Solid hoop strength
Technical Specifications:
Stent Material 316L Stainless Steel
Strut Thickness 0.100 ± 0. 010
Metal Covered Area 14.6% (3.00mm Stent)
Retraction <3% ( 3. 00mm Stent)
Radio Force Excellent
Enter Profile <1. 00mm (3.00mm Stent)
Balloon Material Nylon
Proximal Diameter 2.7F
Distal Diameter 2.0F
Nominal Pressure 6 atm
Rated Burst Pressure 16 atm
Average RBP 20 atm
Working Length 143cm

Order Informations:

Diameter (mm) Length (mm)
12mm 18mm 23mm 28mm 33mm
2.50mm CD4001 CD4006 CD4011 CD4016 CD4021
2.75mm CD4002 CD4007 CD4012 CD4017 CD4022
3.00mm CD4003 CD4008 CD4013 CD4018 CD4023
3.50mm CD4004 CD4009 CD4014 CD4019 CD4024
4.00mm CD4005 CD4010 CD4015 CD4020 CD4025

CD5001 : Cobalt-Chromium Coronary Stent System

Standard Features:

  • Thin strut thickness
  • Decent hoop strength
  • Excellent radiopacity
  • A combination of flexibility, deliverability and conformability
Technical Specifications:
Stent Material L605
Strut (2.00-2.75mm stent)
(3.00-4.00mm stent)
0.080 ± 0. 010mm
0.092 ± 0. 010mm
Metal Covered Area 12.6% ( 3. 00mm Stent)
Retraction < 2 %
Recoil < 5%
Radio Force Excellent
Enter Profile 0.7mm - 1.2mm
Balloon Material Nylon
Distal Diameter 2.7F
Proximal Diameter 2.0F
Balloon Nominal Pressure 6 atm
Balloon Rated Burst Pressure 16 atm
Average Burst Pressure 20 atm
Delivery System Length 143cm

Order Informations:

Diameter (mm) Length (mm)
12mm 18mm 23mm 28mm 33mm
2.50mm CD5001 CD5006 CD5011 CD5016 CD5021
2.75mm CD5002 CD5007 CD5012 CD5017 CD5022
3.00mm CD5003 CD5008 CD5013 CD5018 CD5023
3.50mm CD5004 CD5009 CD5014 CD5019 CD5024
4.00mm CD5005 CD5010 CD5015 CD5020 CD5025

CD6000 : Sirolimus-Eluting Coronary Stent System

Standard Features:

  • Cobalt chromium alloy material, provides persistent support force and better fatigue resistance
  • The extreme low profile makes it easier to cross the stenosis lesions and ensure excellent crossability
  • Mesh structure and low shrinkage rate of stents, ensure accurate release
Technical Specifications:
Stent Material L605 Cobalt-Chromium
Strut Design Open Cell Design
Drug Sirolimus
Coating Material PLGA (Bio-Degradable)
Coating Thickness 4.0 ± 1. 0μm
Drug Releasing Time ≤ 2 months
Coated Drug Concentration 2.2μg /mm²

Diameter (mm) Length (mm)
8 12 13 15 16 18 20 21 23 24 28 29 33 38 40
2.20mm - - - - - -
2.25mm - - - - - -
2.50mm
2.75mm
3.00mm
3.50mm
4.00mm
4.50mm
5.00mm

CD6001 : Disposable Balloon Inflation Devices (A - Type & A - Type Digital)

Standard Features:

  • Ergonomic design facilitates doctor’s operation
  • Trigger release mechanism provides easy and quick deflation
  • Inclination of manometer provides easy and precise view of pressure points
  • Digital display pressure gauge for precise control of operational pressure

Order Informations:


Balloon Inflation Device ( A-type)

CODE DESCRIPTION
CD6001 25ml, 30atm/bar, with Stopcock
CD6002 25ml, 30atm/bar, with Stopcock & Screw type Haemostatic Valve Set
CD6003 25ml, 30atm/bar, with Stopcock & Screw type sideon Tubing Haemostatic Valve Set
CD6004 25ml, 30atm/bar, with Stopcock & Push-pull Haemostatic Valve Set
CD6005 25ml, 30atm/bar, with Stopcock & Push-pull sideon Tubing Haemostatic Valve Set
CD6006 25ml, 30atm/bar, with Stopcock & Y-click Haemostatic Valve Set
CD6007 25ml, 30atm/bar, with Stopcock & Y-click sideon Tubing Haemostatic Valve Set

Balloon Inflation Device ( A-type Digital)

CODE DESCRIPTION
CD6001D 25ml, 30atm/bar, with Stopcock
CD6002D 25ml, 30atm/bar, with Stopcock & Screw type Haemostatic Valve Set
CD6003D 25ml, 30atm/bar, with Stopcock & Screw type sideon Tubing Haemostatic Valve Set
CD6004D 25ml, 30atm/bar, with Stopcock & Push-pull Haemostatic Valve Set
CD6005D 25ml, 30atm/bar, with Stopcock & Push-pull sideon Tubing Haemostatic Valve Set
CD6006D 25ml, 30atm/bar, with Stopcock & Y-click Haemostatic Valve Set
CD6007D 25ml, 30atm/bar, with Stopcock & Y-click sideon Tubing Haemostatic Valve Set

CD6008 : Disposable Balloon Inflation Devices (F - Type & S - Type)

Standard Features:

  • Special designed automatic cam locking makes it easy-handling
  • Square shape handle of F-type applies to different sizes of hands
  • Chinese knots on handle prevent slippery on holding
  • Soft cover on deflation release button reduces deflation vibration

Order Informations:


Balloon Inflation Device ( F-type)

CODE DESCRIPTION
CD6008 30ml, 30atm/bar, with Stopcock
CD6009 30ml, 30atm/bar, with Stopcock & Screw type Haemostatic Valve Set
CD6010 30ml, 30atm/bar, with Stopcock & Screw type sideon Tubing Haemostatic Valve Set
CD6011 30ml, 30atm/bar, with Stopcock & Push-pull Haemostatic Valve Set
CD6012 30ml, 30atm/bar, with Stopcock & Push-pull sideon Tubing Haemostatic Valve Set
CD6013 30ml, 30atm/bar, with Stopcock & Y-click Haemostatic Valve Set
CD6014 30ml, 30atm/bar, with Stopcock & Y-click sideon Tubing Haemostatic Valve Set

Balloon Inflation Device (S-type Digital)

CODE DESCRIPTION
CD6008D 30ml, 30atm (Digital), with Stopcock
CD6008A 30ml, 40atm (Digital), with Stopcock
CD6009D 30ml, 30atm (Digital), with Stopcock & Screw type Haemostatic Valve Set
CD6010D 30ml, 30atm (Digital), with Stopcock & Screw type sideon Tubing Haemostatic Valve Set
CD6011D 30ml, 30atm (Digital), with Stopcock & Push-pull Haemostatic Valve Set
CD6012D 30ml, 30atm (Digital), with Stopcock & Push-pull sideon Tubing Haemostatic Valve Set
CD6013D 30ml, 30atm (Digital), with Stopcock & Y-click Haemostatic Valve Set
CD6014D 30ml, 30atm (Digital), with Stopcock & Y-click sideon Tubing Haemostatic Valve Set

CD6015 : Disposable Balloon Inflation Devices (Gun -Type Blue & L-Type)

Standard Features:

  • Accurate pressure gauge ensures the accuracy and reliability of date
  • The design of particular prehensile safety lock ensures pressurizing and accurately
  • The handle design complying to ergonomics is more comfortable to operate
  • The quick latch mechanism allows for one-handed deflation, even a full pressure

Order Informations:


Balloon Inflation Device ( Gun-type Blue)

CODE DESCRIPTION
CD6015 20ml, 30atm/bar, with Stopcock
CD6016 20ml, 30atm/bar, with Stopcock & Screw type Haemostatic Valve Set
CD6017 20ml, 30atm/bar, with Stopcock & Screw type sideon Tubing Haemostatic Valve Set
CD6018 20ml, 30atm/bar, with Stopcock & Push-pull Haemostatic Valve Set
CD6019 20ml, 30atm/bar, with Stopcock & Push-pull sideon Tubing Haemostatic Valve Set
CD6020 20ml, 30atm/bar, with Stopcock & Y-click Haemostatic Valve Set
CD6021 20ml, 30atm/bar, with Stopcock & Y-click sideon Tubing Haemostatic Valve Set

Balloon Inflation Device ( L-type)

CODE DESCRIPTION
CD6015D 20ml, 30atm/bar, with Stopcock
CD6016D 20ml, 30atm/bar, with Stopcock & Screw type Haemostatic Valve Set
CD6017D 20ml, 30atm/bar, with Stopcock & Screw type sideon Tubing Haemostatic Valve Set
CD6018D 20ml, 30atm/bar, with Stopcock & Push-pull Haemostatic Valve Set
CD6019D 20ml, 30atm/bar, with Stopcock & Push-pull sideon Tubing Haemostatic Valve Set
CD6020D 20ml, 30atm/bar, with Stopcock & Y-click Haemostatic Valve Set
CD6021D 20ml, 30atm/bar, with Stopcock & Y-click sideon Tubing Haemostatic Valve Set

CD6022 : Disposable Balloon Inflation Devices (Gun -Type Black & Semigun-Type)

Standard Features:

  • Accurate pressure gauge ensures the accuracy and reliability of date
  • The design of particular prehensile safety lock ensures pressurizing and accurately
  • The handle design complying to ergonomics is more comfortable to operate
  • The quick latch mechanism allows for one-handed deflation, even a full pressure

Order Informations:


Balloon Inflation Device ( Gun-type Black)

CODE DESCRIPTION
CD6022 20ml, 30atm/bar, with Stopcock
CD6023 20ml, 30atm/bar, with Stopcock & Screw type Haemostatic Valve Set
CD6024 20ml, 30atm/bar, with Stopcock & Screw type sideon Tubing Haemostatic Valve Set
CD6025 20ml, 30atm/bar, with Stopcock & Push-pull Haemostatic Valve Set
CD6026 20ml, 30atm/bar, with Stopcock & Push-pull sideon Tubing Haemostatic Valve Set
CD6027 20ml, 30atm/bar, with Stopcock & Y-click Haemostatic Valve Set
CD6028 20ml, 30atm/bar, with Stopcock & Y-click sideon Tubing Haemostatic Valve Set

Balloon Inflation Device (Semi-Gun type)

CODE DESCRIPTION
CD6022D 20ml, 30atm/bar, with Stopcock
CD6023D 20ml, 30atm/bar, with Stopcock & Screw type Haemostatic Valve Set
CD6024D 20ml, 30atm/bar, with Stopcock & Screw type sideon Tubing Haemostatic Valve Set
CD6025D 20ml, 30atm/bar, with Stopcock & Push-pull Haemostatic Valve Set
CD6026D 20ml, 30atm/bar, with Stopcock & Push-pull sideon Tubing Haemostatic Valve Set
CD6027D 20ml, 30atm/bar, with Stopcock & Y-click Haemostatic Valve Set
CD6028D 20ml, 30atm/bar, with Stopcock & Y-click sideon Tubing Haemostatic Valve Set

CD7001 : Haemostatic Valve Sets (Screw-Type & Double Screw)

Standard Features:

  • Two different types of Y adaptor suit for various customers
  • Large closing knob makes twisting and valve closing very easy
  • Two separate valves of Double Screw in one adaptor fulfill two guide wires operating independently according to actual needs
  • Different valves make it easier to distinguish and operate the two guide wires
  • 2-in-1 design saves procedure time and cost

Order Informations:


Haemostatic Valve Set ( Screw-type)

CODE DESCRIPTION
CD7001 8 Fr Screw type, Sideon Female Luer
CD7002 8 Fr Screw type, Sideon Tubing and Stopcock
CD7003 8 Fr Screw type, Sideon Female Luer, Insertion Tool, Torquer
CD7004 8 Fr Screw type, Sideon Tubing and Stopcock, Insertion Tool, Torquer
CD7005 9 Fr Screw type, Sideon Female Luer
CD7006 9 Fr Screw type, Sideon Tubing and Stopcock
CD7007 9 Fr Screw type, Sideon Female Luer, Insertion Tool, Torquer
CD7008 9 Fr Screw type, Sideon Tubing and Stopcock, Insertion Tool, Torquer

Haemostatic Valve Set ( Double Screw)

CODE DESCRIPTION
CD7001D 8 Fr Screw type, Sideon Female Luer
CD7003D 8 Fr Screw type, Sideon Female Luer, Insertion Tool, Torquer
CD7005D 9 Fr Screw type, Sideon Female Luer
CD7007D 9 Fr Screw type, Sideon Female Luer, Insertion Tool, Torquer

CD7009 : Haemostatic Valve Sets (Push-Pull Type & Y - Click)

Standard Features:

  • Push-pull Y connector makes it easier for doctor to operate precisely
  • Three-stage valve of Y-click creates manueuverability without any bleeding
  • Auto-closing mechanism ensures the device to move from semiclosed position to closed position antomatically when contrast is injected from the side-on lumen

Order Informations:


Haemostatic Valve Set (Push-Pull type)

CODE DESCRIPTION
CD7009 7 Fr Push-pull, Sideon Female Luer
CD7010 7 Fr Push-pull, Sideon Tubing and Stopcock
CD7011 7 Fr Push-pull, Sideon Female Luer, Insertion Tool, Torquer
CD7012 7 Fr Push-pull, Sideon Tubing and Stopcock, Insertion Tool, Torquer
CD7013 8 Fr Push-pull, Sideon Female Luer
CD7014 8 Fr Push-pull, Sideon Tubing and Stopcock
CD7015 8 Fr Push-pull, Sideon Female Luer, Insertion Tool, Torquer
CD7016 8 Fr Push-pull, Sideon Tubing and Stopcock, Insertion Tool, Torquer

Haemostatic Valve Set ( Y-Click)

CODE DESCRIPTION
CD7009D 7 Fr Push-pull, Sideon Female Luer
CD7010D 7 Fr Push-pull, Sideon Tubing and Stopcock
CD7011D 7 Fr Push-pull, Sideon Female Luer, Insertion Tool, Torquer
CD7012D 7 Fr Push-pull, Sideon Tubing and Stopcock, Insertion Tool, Torquer
CD7013D 8 Fr Push-pull, Sideon Female Luer
CD7014D 8 Fr Push-pull, Sideon Tubing and Stopcock
CD7015D 8 Fr Push-pull, Sideon Female Luer, Insertion Tool, Torquer
CD7016D 8 Fr Push-pull, Sideon Tubing and Stopcock, Insertion Tool, Torquer

CD8001 : Femoral Introducer Sets

Standard Features:

  • Radiopaque sheath with hemostasis valve and sideport with attached 3-way stopcock
  • Radiopaque Vessel Dilator
  • Smooth atraumatic sheath and dilator transitions and a locking bub design make vessel entry quick and easy

Contents:

Introducer Sheath + Dilator, Syringe, Introducer needle, Guide wire, Scalpel


Order Informations:

CODE Size(Fr) Length (cm) Guidewire Introducer Needle
CD8001 4 9 0.021” 20G×3.8cm
CD8002 5 11 0.035” 18G×6.5cm
CD8003 6 11 0.038” 18G×6.5cm
CD8004 7 11 0.038” 18G×6.5cm
CD8005 8 11 0.038” 18G×6.5cm
CD8006 9 11 0.038” 18G×6.5cm
CD8007 10 11 0.038” 18G×6.5cm
CODE Size(Fr) Length (cm) Guidewire Introducer Needle
CD8008 6 23 0.038” 18G×6.5cm
CD8009 7 23 0.038” 18G×6.5cm
CD8010 8 23 0.038” 18G×6.5cm
CD8011 9 23 0.038” 18G×6.5cm

CD8012 : Transradial Introducer Sets

Standard Features:

  • Used for coronary intervention to reduces vascular access complications
  • Uniquely designed sheath for the smooth atraumatic insertion and removal
  • Nickel-titanium guidewire for the maximum flexibility without kinking
  • Complete kit includes everything for the applicable procedure

Contents:

Transradial Introducer Sheath + Dilator, Syringe, Introducer needle, Guide wire, Scalpel


Order Informations:

CODE Size(Fr) Length (cm) Guidewire I.V.Cannula
CD8012 4 7 0.018” 20G×3.2cm
CD8013 5 7 0.018” 20G×3.2cm
CD8014 6 7 0.018” 20G×3.2cm
CD8015 7 7 0.018” 20G×3.2cm
CODE Size(Fr) Length (cm) Guidewire I.V.Cannula
CD8016 4 9 0.018” 20G×3.2cm
CD8017 5 11 0.018” 20G×3.2cm
CD8018 6 11 0.018” 20G×3.2cm
CD8019 7 11 0.018” 20G×3.2cm
CODE Size(Fr) Length (cm) Guidewire I.V.Cannula
CD8020 5 16 0.018” 20G×3.2cm
CD8021 6 16 0.018” 20G×3.2cm
CD8022 7 16 0.018” 20G×3.2cm

CD8023 : Hydrophilic Introducer Sets

Standard Features:

  • Perform diagnostic and interventional procedures without upsizing to a larger sheath
  • Optimal radial access, especially in women with smaller radial arteries
  • Less penetration resistance than conventional sheaths
  • Easy insertion and removal with hydrophilic coating

Contents:

Transradial Introducer Sheath + Dilator, Syringe, Introducer needle, Guide wire, Scalpel


Order Informations:

CODE Size(Fr) Length (cm) Guidewire Introducer Needle
CD8023 4 7 0.021”×45cm Straight 21G×4.0cm
CD8024 5 7 0.021”×45cm Straight 21G×4.0cm
CD8025 6 7 0.021”×45cm Straight 21G×4.0cm
CD8026 7 7 0.021”×45cm Straight 21G×4.0cm
CODE Size(Fr) Length (cm) Guidewire Introducer Needle
CD8027 4 9 0.021”×45cm Straight 21G×4.0cm
CD8028 5 9 0.021”×45cm Straight 21G×4.0cm
CD8029 6 9 0.021”×45cm Straight 21G×4.0cm
CD8030 7 9 0.021”×45cm Straight 21G×4.0cm
CODE Size(Fr) Length (cm) Guidewire Introducer Needle
CD8031 4 11 0.021”×45cm Straight 21G×4.0cm
CD8032 5 11 0.021”×45cm Straight 21G×4.0cm
CD8033 6 11 0.021”×45cm Straight 21G×4.0cm
CD8034 7 11 0.021”×45cm Straight 21G×4.0cm
CODE Size(Fr) Length (cm) Guidewire Introducer Needle
CD8035 4 16 0.021”×45cm Straight 21G×4.0cm
CD8036 5 16 0.021”×45cm Straight 21G×4.0cm
CD8037 6 16 0.021”×45cm Straight 21G×4.0cm
CD8038 7 16 0.021”×45cm Straight 21G×4.0cm

CD8040 : Peelable Introducer Sets

Standard Features:

  • Lower insertion forces during placement into vasculature
  • Reduced drug on catheter during placement during the sheath
  • Convenient dilator to sheath interlock

Contents:

Peelable Introducer Sheath + Dilator, Syringe, Introducer needle, Guide wire, Scalpel


Order Informations:

CODE Size(Fr) Length (cm) Guidewire Introducer Needle
CD8040 5 14 0.038”×60cm J-tip 18G×6.5cm
CD8041 6 14 0.038”×60cm J-tip 18G×6.5cm
CD8042 7 14 0.038”×60cm J-tip 18G×6.5cm
CD8043 8 14 0.038”×60cm J-tip 18G×6.5cm
CD8044 9 14 0.038”×60cm J-tip 18G×6.5cm
CD8045 10 14 0.038”×60cm J-tip 18G×6.5cm

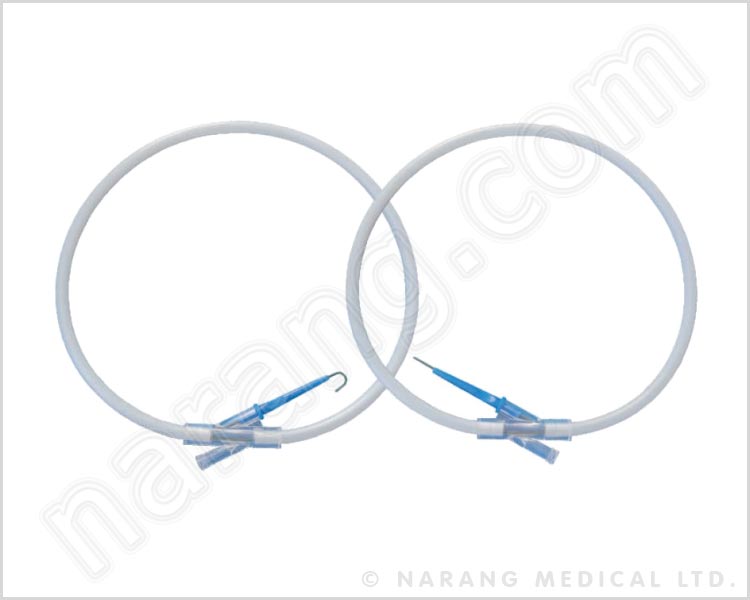

CD9001 : PTFE Coated Guide Wires

Standard Features:

  • 3cm flexible tip makes tip easy to deflect
  • Elastic and shape-resistance distal core and lubricious coating provide great accessibility and excellent steerability
  • Supportive proximal shaft increases pushability

Order Informations:

CODE DESCRIPTION
CD9001 Straight tip, 0.032” × 150cm
CD9002 J - tip, 0.032” × 150cm
CD9003 Straight tip, 0.032” × 260cm
CD9004 J - tip, 0.032” × 260cm
CD9005 Straight tip, 0.035” × 150cm
CD9006 J - tip, 0.035” × 150cm
CD9007 Straight tip, 0.035” × 260cm
CD9008 J - tip, 0.035” × 260cm
CD9009 Straight tip, 0.038” × 150cm
CD9010 J - tip, 0.038” × 150cm
CD9011 Straight tip, 0.038” × 260cm
CD9012 J - tip, 0.038” × 260cm

CD9013 : PTCA Guide Wires

Standard Features:

  • Full length tapered core for excellent pushability-1:1 transmission from the proximal end to the tip
  • PTFE coating on the shaft plus special coating of distal coil minimizes friction and provide excellent catheter movement
  • Platinum alloy of distal coil guarantees visibility during x-ray process
  • Moderate radiopacity of the shaft plus 2 marks to increase convenience of operation
  • Accurate quantification of tip hardness offers flexibility from super soft to super stiff

Order Informations:

CODE Flexibility Diameter Tip Load Length Tip Shape
CD9013 Super soft 0.014” 0.7g 190cm Straight
CD9014 Super soft 0.014” 0.7g 190cm Angled
CD9015 Super soft 0.014” 0.7g 300cm Straight
CD9016 Super soft 0.014” 0.7g 300cm Angled
CD9017 Soft 0.014” 3g 190cm Straight
CD9018 Soft 0.014” 3g 190cm Angled
CD9019 Soft 0.014” 3g 300cm Straight
CD9020 Soft 0.014” 3g 300cm Angled
CD9021 Medium 0.014” 5g 190cm Straight
CD9022 Medium 0.014” 5g 190cm Angled
CD9023 Medium 0.014” 5g 300cm Straight
CD9024 Medium 0.014” 5g 300cm Angled
CD9025 Stiff 0.014” 9g 190cm Straight
CD9026 Stiff 0.014” 9g 190cm Angled
CD9027 Stiff 0.014” 9g 300cm Straight
CD9028 Stiff 0.014” 9g 300cm Angled
CD9029 Super Stiff 0.014” 12g 190cm Straight
CD9030 Super Stiff 0.014” 12g 190cm Angled
CD9031 Super Stiff 0.014” 12g 300cm Straight
CD9032 Super Stiff 0.014” 12g 300cm Angled

CD9033 : Hydrophilic Coated Guide Wires

Standard Features:

  • Hydrophilic coating provide excellent lubricity
  • Superelastic Nitinol wire core for kink resistance prevent guidewire kinking
  • Full length tapered core design for excellent torque transmission and flexibility
  • Special polymer cover ensure the good radiopaque performance

Order Informations:

Dimensions
OD 0.025”-0.038”
Length 80cm-300cm

Order Informations:

CODE Diameter Length Shaft Stiffiness Tip Shape
CD9033 0.035” 150cm Standard Straight
CD9034 0.035” 150cm Standard Angled
CD9035 0.035” 180cm Standard Straight
CD9036 0.035” 180cm Standard Angled
CD9037 0.035” 260cm Standard Straight
CD9038 0.035” 260cm Standard Angled
CD9039 0.038” 150cm Standard Straight
CD9040 0.038” 150cm Standard Angled
CD9041 0.038” 180cm Standard Straight
CD9042 0.038” 180cm Standard Angled
CD9043 0.038” 260cm Standard Straight
CD9044 0.038” 260cm Standard Angled

CD9045 : Stainless Steel Guide Wires

Standard Features:

  • Standard Fixed Core
  • Non-Coated

Order Informations:

Dimensions
OD 0.018”-0.050”
Length 10cm-300cm

Order Informations:

CODE DESCRIPTION
CD9045 Straight tip, 0.035” × 45cm
CD9046 J - tip, 0.035” × 45cm
CD9047 Straight tip, 0.035” × 60cm
CD9048 J - tip, 0.035” × 60cm

CD9050 : Zebra Guide Wires

Standard Features:

  • Solid, kink-resistant nitinol core with the extra slippery surface
  • Specially designed blue and white stripes for a better visualization of the guidewire track
  • Allow precisely to position to the target area under X-ray illumination

Order Informations:

CODE DESCRIPTION
CD9050 10cm flexible Straight tip, 0.035” × 150cm
CD9051 10cm flexible Angled tip, 0.035” × 150cm
CD9052 10cm flexible Straight tip, 0.035” × 260cm
CD9053 10cm flexible Angled tip, 0.035” × 260cm
CD9054 10cm flexible Straight tip, 0.035” × 430cm
CD9055 10cm flexible Angled tip, 0.035” × 430cm

CD1101 : Disposable TR-Closure Band

Standard Features:

  • Two differnt sizes are applicable to almost all patients. Large size is for 20cm to 26cm wrist perimeters while small size is for 16cm to 21cm wrist perimeters
  • Pressure in air balloons is easily adjusted by specially designed syringe

Order Informations:

CODE DESCRIPTION
CD1101 Large size 29cm with 20ml Syringe
CD1102 Small size 23.5cm with 20ml Syringe

CD1103 : Disposable ANGIO-Closure Pad

Standard Features:

  • Luer lock fits both ordinary syringe and control syringe
  • Tape with super adhesive guarantees air balloon having sufficient stanching pressure

Order Informations:

CODE DESCRIPTION
CD1103 Large size 30cm × 26cm

CD1104 : Dose-Control Syringes

Standard Features:

Dose-Control Syringes

  • Smooth operation
  • Clear, glass-like polycarbonate for complete clarity
  • Stopper has 0.5ml reservoir

Order Informations:

CODE DESCRIPTION
CD1104 10ml, Roatating Male Luer, Thumb Ring & Finger Rings
CD1105 12ml, Roatating Male Luer, Thumb Ring & Finger Rings
CD1106 10ml, Fixed Male Luer, Thumb Ring & Finger Rings
CD1107 12ml, Fixed Male Luer, Thumb Ring & Finger Rings

CD1201 : 3-Way Stopcocks

Order Informations:

CODE DESCRIPTION
CD1201 500psi, “ON” W/Rotating Male Luer, 3 Way
CD1202 500psi, “OFF” W/Rotating Male Luer, 3 Way
CD1203 900psi, “ON” W/Rotating Male Luer, 3 Way
CD1204 900psi, “OFF” W/Rotating Male Luer, 3 Way
CD1205 1200psi, “ON” W/Rotating Male Luer, 3 Way
CD1206 1200psi, “OFF” W/Rotating Male Luer, 3 Way

CD1301 : Manifolds

Order Informations:

CODE DESCRIPTION
CD1301 250psi, Blue, “OFF” Right-Handed w/ Rotating Adapter, 2 Port
CD1302 250psi, White, “ON” Right-Handed w/ Rotating Adapter, 2 Port
CD1303 250psi, Blue, “OFF” Right-Handed w/ Rotating Adapter, 3 Port
CD1304 250psi, Blue, “ON” Right-Handed w/ Rotating Adapter, 3 Port
CD1305 500psi, Blue, “OFF” Right-Handed w/ Rotating Adapter, 3 Port
CD1306 500psi, Blue, “ON” Right-Handed w/ Rotating Adapter, 3 Port
CD1307 500psi, White, “OFF” Right-Handed w/ Rotating Adapter, 3 Port
CD1308 500psi, White, “ON” Right-Handed w/ Rotating Adapter, 3 Port

CD1309 : Manifold Kits

Order Informations:

CODE DESCRIPTION
CD1309 Manifold, Dose-control Syringe, 1 Infusion Set, 2 Pressure Lines
CD1310 Manifold, Dose-control Syringe, 2 Infusion Sets, 1 Pressure Line
CD1311 Manifold, 4 Control Syringes, 2 Infusion Sets, 1 Pressure Line, Stopcock
CD1312 Manifold, 2 Control Syringes, 2 Infusion Sets, 1 Pressure Line, Stopcock
CD1313 Manifold, 3 Control Syringes, 2 Infusion Sets, 1 Pressure Line, Stopcock

CD2101 : Connecting Tubes

Order Informations:


500 PSI

CODE DESCRIPTION
CD2101 PVC 30cm Female to Male Luer Lock
CD2102 PVC 60cm Female to Male Luer Lock
CD2103 PVC 75cm Female to Male Luer Lock
CD2104 PVC 90cm Female to Male Luer Lock
CD2105 PVC 120cm Female to Male Luer Lock
CD2106 PVC 150cm Female to Male Luer Lock

1200 PSI

CODE DESCRIPTION
CD2107 PVC 30cm Female to Male Luer Lock
CD2108 PVC 60cm Female to Male Luer Lock
CD2109 PVC 75cm Female to Male Luer Lock
CD2110 PVC 90cm Female to Male Luer Lock
CD2111 PVC 120cm Female to Male Luer Lock
CD2112 PVC 150cm Female to Male Luer Lock
CD2113 Braided PU 120cm Female to Male Luer Lock
CD2114 Braided PU 150cm Female to Male Luer Lock

CD2115 : Cardiology Angiographic Catheters

Standard Features:

  • Soft tip: Radiopaque and atraumatic tip to minimize vessel trauma
  • Kink resistand shaft: superior pushability, optimum torque and longitudinal stability
  • Curve retention for accurate diagnostic catheter placement
  • Smooth surface avoids platelet aggregation
  • Colour coded: the hub is clearly identified and colour coded to facilitate selection

Order Informations:

CODE(5Fr) CODE(6Fr) DESCRIPTION CONFIGURATION LENGTH(cm)
CD2115 CD2215 Judkins Left JL3.5 100
CD2116 CD2216 Judkins Left JL4.0 100
CD2117 CD2217 Judkins Left JL4.5 100
CD2118 CD2218 Judkins Left JL5.0 100
CD2119 CD2219 Judkins Left JL5.5 100
CD2120 CD2220 Judkins Right JR3.5 100
CD2121 CD2221 Judkins Right JR4.0 100
CD2122 CD2222 Judkins Right JR4.5 100
CD2123 CD2223 Judkins Right JR5.0 100
CD2124 CD2224 Judkins Right JR5.5 100
CD2125 CD2225 Straight Pigtail 180° (Straight) 110
CD2126 CD2226 Angled Pigtail 145° (Angled) 110

TIG Catheter

CODE SIZE DESCRIPTION LENGTH(cm)
CD2128 4Fr TIG Catheter 100
CD2129 5Fr TIG Catheter 100
CD2130 6Fr TIG Catheter 100

CD5101 : Guiding Catheters

Standard Features:

  • Polymer material with unique braid design, provide excellent kink resistance
  • Multi-density braid design provides superior back-up support
  • Radiopaque soft tip ensures atraumatic navigation
  • 1:1 torque response promotes quicker catheter seating with less whipping
  • Provides smooth and compatible pathway for multiple and various devices

Order Informations:

5Fr 6Fr 7Fr 8Fr Tip Curve Length (cm)
CD5101 CD6101 CD7101 CD8101 XB 3.0 Extra Back-up Left 100
CD5102 CD6102 CD7102 CD8102 XB 3.5 Extra Back-up Left 100
CD5103 CD6103 CD7103 CD8103 XB 4.0 Extra Back-up Left 100
CD5104 CD6104 CD7104 CD8104 JL 3.0 Judkins Left 100
CD5105 CD6105 CD7105 CD8105 JL 3.5 Judkins Left 100
CD5106 CD6106 CD7106 CD8106 JL 4.0 Judkins Left 100
CD5107 CD6107 CD7107 CD8107 JL 4.5 Judkins Left 100
CD5108 CD6108 CD7108 CD8108 JL 5.0 Judkins Left 100
CD5109 CD6109 CD7109 CD8109 JR 3.0 Judkins Right 100
CD5110 CD6110 CD7110 CD8110 JR 3.5 Judkins Right 100
CD5111 CD6111 CD7111 CD8111 JR 4.0 Judkins Right 100
CD5112 CD6112 CD7112 CD8112 JR 4.5 Judkins Right 100
CD5113 CD6113 CD7113 CD8113 JR 5.0 Judkins Right 100
CD5114 CD6114 CD7114 CD8114 AL 1 Amplatz Left 100
CD5115 CD6115 CD7115 CD8115 AL 2 Amplatz Left 100
CD5116 CD6116 CD7116 CD8116 AL 3 Amplatz Left 100
CD5117 CD6117 CD7117 CD8117 AR 1 Amplatz Right 100
CD5118 CD6118 CD7118 CD8118 AR 2 Amplatz Right 100
CD5119 CD6119 CD7119 CD8119 AR 3 Amplatz Right 100
CD5120 CD6120 CD7120 CD8120 3 DRC Williams 100
CD5121 CD6121 CD7121 CD8121 MPA Multipurpose 100
CD5122 CD6122 CD7122 CD8122 MPB Multipurpose 100

CD2131 : Angiographic Syringes

Order Informations:

CODE Volume (ml) Description
Single Dual Content Used for Medrad
CD2131 CD2141 200 Used for CT: MCT & plus, OP-100, VCT610, ECT710
CD2132 CD2142 200 Used for CT: STELLANT
CD2133 CD2143 150 Used for DSA: Mark V & Mark V Provis
CD2134 CD2144 200 Used for DSA: Mark V & Mark V Provis
CD2135 CD2145 60 Used for DSA: Mark V & Mark V Provis
CD2136 CD2146 130 Used for DSA: Mark III & Mark IV
CD2137 CD2147 65 Used for MRI: Spectris
CD2138 CD2148 115 Used for MRI: Spectris
CD2139 CD2149 65/115 Used for MRI: Spectris
CD2140 CD2150 190 Used for CT: SALIENT
Single Dual Content Used for Libel-Flarsheim
CD2151 CD2156 200 Used for CT: CT9000 & CT9000 ADV
CD2152 CD2157 150 Used for DSA: Angiomat 6000
CD2153 CD2158 150 Used for CT & DSA: Angiomat lllumena
CD2154 CD2159 100 Used for DSA: Angiomat 3000
CD2155 CD2160 60 Used for MRI: Optistar
Single Dual Content Used for EZEM
CD2161 CD2162 200 Used for CT: Empower
Single Dual Content Used for Metron
CD2164 CD2168 200 Used for CT: Accutron
CD2165 CD2169 65 Used for MRI: Accutron
CD2166 CD2170 65/200 Used for MRI: Accutron
Single Dual Content Used for Nemoto Kyorindo
CD2171 CD2181 100 Used for CT: A-25
CD2172 CD2182 200 Used for CT: A-25, A-60
CD2173 CD2183 90 Used for DSA: M800
CD2174 CD2184 120 Used for DSA: Nemoto 120S
CD2175 CD2185 60 Nemoto Dual Shot, Sonic Shot 50
CD2176 CD2186 100/200 Used for CT: A-25
CD2177 CD2187 60/200 Used for CT: A-25, A-60
CD2171 Standard Sets:

Single:(CT/MRI)

1 - Syringe

1 - Coiled Tube

1 - “J” Tube

Single:(CT/MRI)

1 - Syringe1 - Coiled Tube

1 - “J” Tube

Dual:

2 - Syringe

1 - Y Tube with Valve

2 - “J” Tube

2 - Spike


CD3101 : Connecting Tubing (300PSI)

Order Informations:

CODE DESCRIPTION
CD3101 Coil Tube 150cm
CD3102 Y Tube with One Valve 150cm
CD3103 Y Tube with One Valve 250cm
CD3104 Y Tube with Two Valves 150cm
CD3105 Y Tube with Two Valves 250cm
CD3106 Double Infusion Line with Two Valves 150cm



CD3206 : Disposable Skin Staplers

Order Informations:

Code Nail size after Closure(mm) Quantity of the Nail Remover of Skinstaple
CD3206 7.4×4. 6 15 CSPE-CW
CD3207 5.4×3.5 15 CSPE-CR
CD3208 7.4×4. 6 25 CSPE-CW
CD3209 5.4×3.5 25 CSPE-CR
CD3210 7.4×4. 6 35 CSPE-CW
CD3211 5.4×3.5 35 CSPE-CR
CD3212 7.4×4. 6 45 CSPE-CW
CD3213 5.4×3.5 45 CSPE-CR

CD3201 : Introducer Needles

Order Informations:

CODE DESCRIPTION
CD3201 Pink Hub, 18Ga × 7cm
CD3202 Pink Hub, 20Ga × 3. 8cm
CD3203 Clear Hub, 18Ga × 7cm
CD3204 Clear Hub, 20Ga × 3. 8cm
CD3205 Y shape, 18Ga × 7cm

CD2301 : Percutaneous Nephrostomy Set

Contents: Peelabel Introducer Sheath, Dilators, Tracar Needles, Guide Wire

Order Informations:

CODE With Fascial Dilators Fr
CD2301 8Fr, 10Fr 10Fr
CD2302 8Fr, 10Fr, 12Fr 12Fr
CD2303 8Fr, 10Fr, 12Fr, 14Fr 14Fr
CD2304 8Fr, 10Fr, 12Fr, 14Fr, 16Fr 16Fr
CD2305 8Fr, 10Fr, 12Fr, 14Fr, 16Fr, 18Fr 18Fr
CD2306 8Fr, 10Fr, 12Fr, 14Fr, 16Fr, 18Fr, 20Fr 20Fr

CD3311 : Disposable Pressure Transducer Kits

Standard Features:

  • Superior visualization of fluid
  • Consistent and accurate monitoring
  • Easy assembly, reduce setup time
  • High quality chip from global leading sensor supplier, measurement specialities

Contents: Transducer, Infusion Set, Pressure Monitoring Line, Stopcock etc


Order Informations:

CODE (Single Channel Kit) REF (Double Channel Kit) DESCRIPTION
CD3311 CD3321 With Abbott connector
CD3312 CD3322 With B.Braun connector
CD3313 CD3323 With BD connector
CD3314 CD3324 With Edward connector
CD3315 CD3325 With Utah connector

CD1450 : Central Venous Catheters

Standard Features:

  • PU Material
  • Excellent blue soft-tip to significantly reduce risk of vascular trauma
  • Medical grade material: catheter automatically softens under the temperature of 37°
  • With radiopaque materials, ensure correct placement of the catheter tip

Central Venous Catheter Kit: Central venous Catheter, 5ml syringe, Introducer needle, Guide wire, Dilator, Catheter clamp, injection cap, injection needle, Scalpel


Order Informations:


Single Lumen Catheter

CODE Size (Ga)×Length (cm)
CD1450 14Ga × 15cm
CD1451 14Ga × 20cm
CD1452 14Ga × 30cm
CD1453 16Ga × 15cm
CD1454 16Ga × 20cm
CD1455 16Ga × 30cm
CD1456 18Ga × 13cm
CD1457 18Ga × 15cm
CD1458 18Ga × 20cm
CD1459 20Ga × 13cm
CD1460 20Ga × 15cm
CD1461 20Ga × 20cm

Double Lumen Catheter

CODE Size (Ga)×Length (cm)
CD1462 4Ga × 5cm
CD1463 4Ga × 8cm
CD1464 4Ga × 13cm
CD1465 5Ga × 8cm
CD1466 5Ga × 13cm
CD1467 5Ga × 20cm
CD1468 7Ga × 15cm
CD1469 7Ga × 20cm
CD1470 7Ga × 30cm
CD1471 8Ga × 20cm
CD1472 8Ga × 30cm

Triple Lumen Catheter

CODE Size (Ga)×Length (cm)
CD1474 5.5Ga × 8cm
CD1475 5.5Ga × 13cm
CD1476 5.5Ga × 15cm
CD1477 5.5Ga × 20cm
CD1478 7Ga × 15cm
CD1479 7Ga × 20cm
CD1480 7Ga × 30cm
CD1481 8.5Ga × 20cm
CD1482 8.5Ga × 30cm

Quad Lumen Catheter

CODE Size (Ga)×Length (cm)
CD1483 8.5Ga × 15cm
CD1484 8.5Ga × 20cm
CD1485 8.5Ga × 30cm

CD1501 : Hemodialysis Catheters

Standard Features:

  • Excellent blue soft-tip to significantly reduce risk of vascular trauma
  • Medical grade material: catheter automatically softens under the temperature of 37°
  • With radiopaque materials, ensure correct placement of the catheter tip
Hemodialysis Catheter Kit: Hemodialysis Catheter, 5ml syringe, Introducer needle, Guide wire, Dilator, Catheter clamp, injection cap, injection needle, Scalpel

Order Informations:


Single Lumen Catheter

Size (Fr)   Length (cm)
    10 13 16 20
8.5 Straight CD1501 CD1502 CD1503 CD1504
  Curved CD1601 CD1602 CD1603 CD1604

Double Lumen Catheter

Size (Fr)   Length (cm)
    13 16 20
8.5 Straight CD1505 CD1506 CD1507
  Curved CD1605 CD1606 CD1607
11.5 Straight CD1508 CD1509 CD1510
  Curved CD1608 CD1609 CD1610
12 Straight CD1511 CD1512 CD1513
  Curved CD1611 CD1612 CD1613

Triple Lumen Catheter

Size (Fr)   Length (cm)
    13 16 20 30
11.5 Straight CD1515 CD1516 CD1517 CD1518
  Curved CD1615 CD1616 CD1617 CD1618
12 Straight CD1520 CD1521 CD1522 CD1523
  Curved CD1620 CD1621 CD1622 CD1623

CD4100 : Ureteral Stent Sets

Standard Features:

  • TPU material with mark and it can be visiable under X Ray
  • The catheter has a smooth side hole to ensure smooth drainage
  • Unique elbow design
  • Length 12--30 cm
Contents: Ureteral Catheter (Pig Tail Catheter), Catheter Clip, Pusher, Guide Wire

Order Informations:

Size (Fr) Open-Close Open-Open
4.8 CD4100 CD4105
5 CD4101 CD4106
6 CD4102 CD4107
7 CD4103 CD4108
8 CD4104 CD4109

CD2201 : Drainage Catheter

Contents: Drainage Catheter, Guide Wire, Dilator, Introduer Needle, Tube


Order Informations:

CODE Size (Fr) Length (cm)
CD2201 8 20
CD2202 10 20
CD2203 12 20
CD2204 14 20
CD2205 12 30
CD2206 14 30

Categories



What our Clients are Saying

The organic reviews not hoax.


Meet Us At


India Healthcare 2024

13th to 15th Jun. 2024
Booth No.: A01
IICC Dwarka, New Delhi, India

FIME 2024

19th to 21st Jun. 2024
Miami Beach Convention Center, Miami Beach, Florida, USA

MEDICA 2024

11th to 14th Nov. 2024
Düsseldorf, Germany.

Become Our Distributor

Let's profit together!
We are looking for distributors in your area.

Cardiology Consumables - Manufacture and Exporters of Polyethersulfone (PES) Dialyzer, Bloodline, Hemodialysis Catheter Kits, Arterial-Venous Fistula Needles, I.V. Start Kit, Radiology Procedure Pack, Minor Surgical Kit, Spinal Set, Swabbing Set, Dental Kit, Basic Procedure Pack, Procedure Pack, Catheterization Set, Dialysis Set, Suture Set, Suture Removal Set, Manufacturer, India. Trust NET brand for Surgical Instruments, Medical Supplies, Hospital Equipments, Laboratory Products & Goods.

Narang Medical Limited

Narang Tower, 46 Community Centre, Naraina Ph-I, New Delhi - 110028, India.

Call us: +91-11-45554000

Mail Us: NET@narang.com

Associate Sites


© Narang Medical Limited. All Rights Reserved

Narang Medical Reviews

Cardiology Consumables

Cardiology Consumables Suppliers

Cardiology Consumables Manufacturer

Cardiology Consumables India
